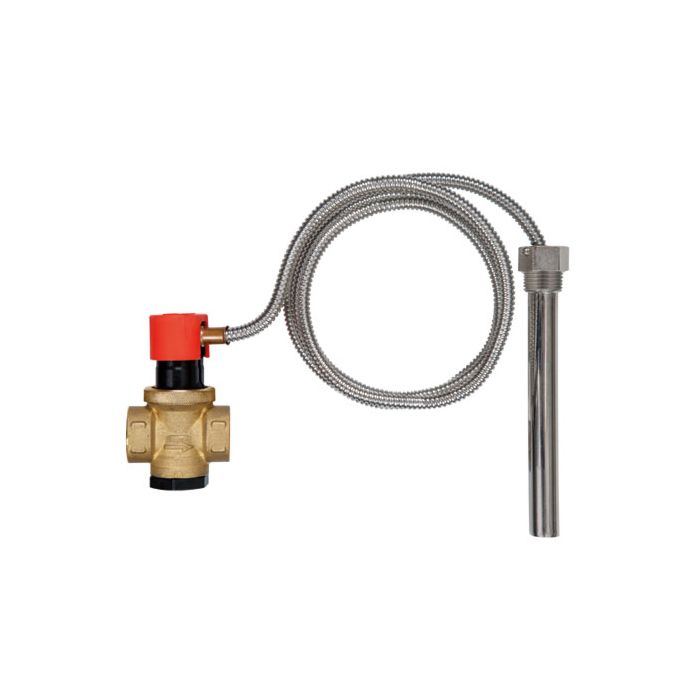

Afriso drain protection 42415 thermal, capillary tube length 1300 mm
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 42415
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Afriso drain protection 42415
- with 2 independent sensor systems
- consisting of a valve housing
- Lift valve
- 2 independent bellows displacement sensors with liquid-filled temperature sensors and an immersion sleeve
- the capillary tube is protected by flexible metal hose
- the TAS is connected to the hot water outlet of the water heater or to the inlet of the safety heat exchanger
- If the response temperature is exceeded, the lift valve is opened by the thermal travel sensor
- Cooling water is supplied from the mains network, thus preventing the maximum permissible operating temperature from being exceeded
- Operating pressure max. 10 bar
- Ambient temperature range 80 °C
- Response temperature 99 °C
- Blow-off capacity at 110 °C = 1 bar > 2
- 4 cubic metres/hour
- Connections 2x G 3/4 internal thread
- Connection immersion tube G1/2 external thread
- Immersion tube length 146 mm
- Capillary tube length 1,300 or 4,000 mm
- Housing made of pressed brass
