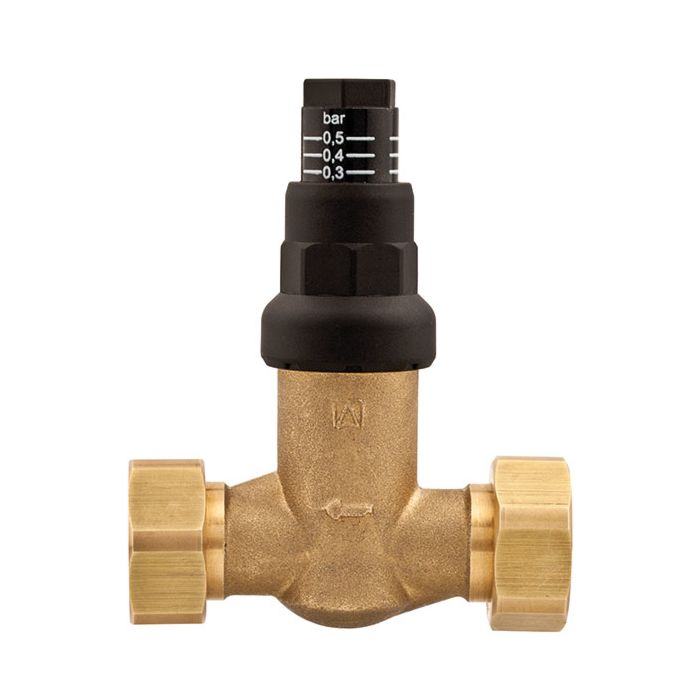

Afriso differential overflow valve 42384 G 3/4, 0.1/0.5 bar, straight version
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Afriso differential overflow valve 42384
- Differential pressure overflow valve with directly readable setting scale
- Brass housing
- available as a straight version or as a corner version for particularly tight installation situations
- The differential pressure at full load of the heating system is set directly on the overflow valve
- If the flow rate decreases, the valve opens to keep the delivery head of the circulation pump constant
- Temperature range max. 95 °C (briefly 120 °C)
- Operating pressure 6 bar
- Differential pressure continuously / adjustable
- Brass housing
- Corner version: Inlet G 3/4 IG/Outlet screw connection flat sealing with union nut G 3/4
- straight version: flat sealing screw connection on both sides with union nut G 3/4
