Afriso vessel connection combination 77932 3 bar, with insulation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 77932
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

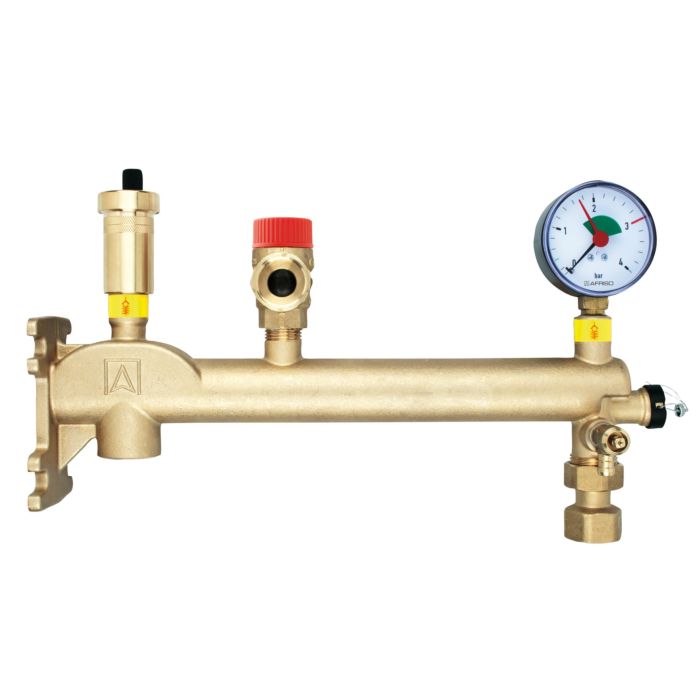

Afriso vessel connection combination 77932
- for connecting membrane expansion vessels up to 50 l for closed heating systems according to EN 12828 up to an output of 50 kW
- Pre-assembled combination fitting consisting of fitting carrier made of solid cast brass with integrated cap valve for connecting the diaphragm expansion vessel
- component-tested safety valve
- Heating pressure gauge with red marking pointer
- mounted via self-sealing mounting valve
- Quick vent (12 bar) mounted above self-sealing mounting valve
- two insulation half shells
- Boiler connections G 3/4 internal thread
- Expansion vessel G 3/4 internal thread
- Temperature range medium max. 120 °C
- Dimensions (with insulation) W x H x D 360 x 185 x 100 mm
- Insulation Polypropylene EPP
- Brass fittings (projection 300 mm)
- Diaphragm safety valve MS (inlet x outlet G 1/2 x G 3/4
- Seal PTFE ring rotatably sealed
- Response pressure 3 bar)
- Heat output 50 kW
- Bourdon tube pressure gauge with self-sealing mounting valve
- Display range 0/4 bar (with red marker pointer)
- Ø 63 mm-G 3/8 wheel
- Quick vent with Aquastop (inlet G3/8
- Nominal pressure 12 bar)
- with GAK and mounting accessories
