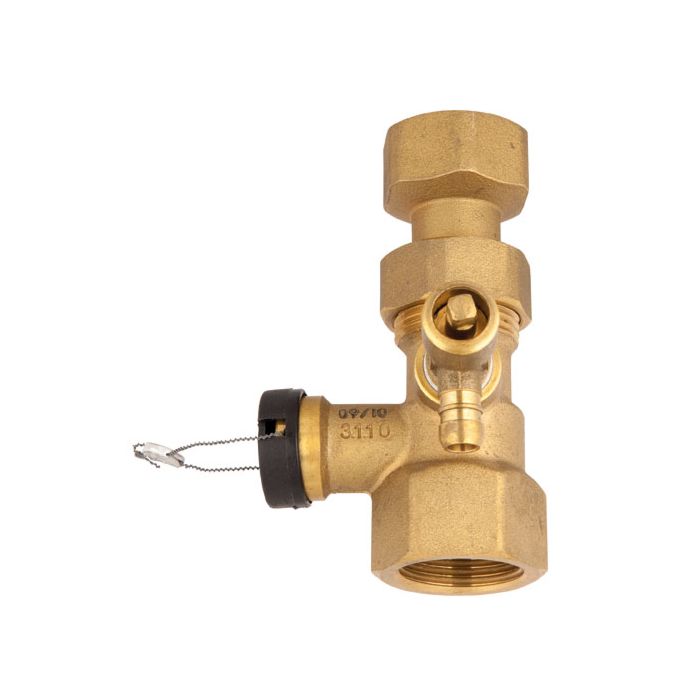

Afriso cap valve 77924 G 3/4 x 3/4, with drain tap
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Afriso cap valve 77924
- for membrane expansion vessels in heating systems according to EN 12828 and solar systems
- to be installed at the water inlet of the expansion vessel
- Cap valve with connection screw
- the shut-off valve is secured with a cap and seal against accidental closing
- Valve operation of the standard square key SW5 for radiator vent valves
- When replacing, the expansion vessel can be shut off from the heating system and emptied at the drain tap
- Operating pressure max. 10 bar
- Operating temperature range 0/120 °C
- Emptying capacity Kvs 0
- 5 m³/h
