Afriso cap valve 77949 G 3/4 x 3/4, with integrated fill and drain valve G 3/4
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 77949
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

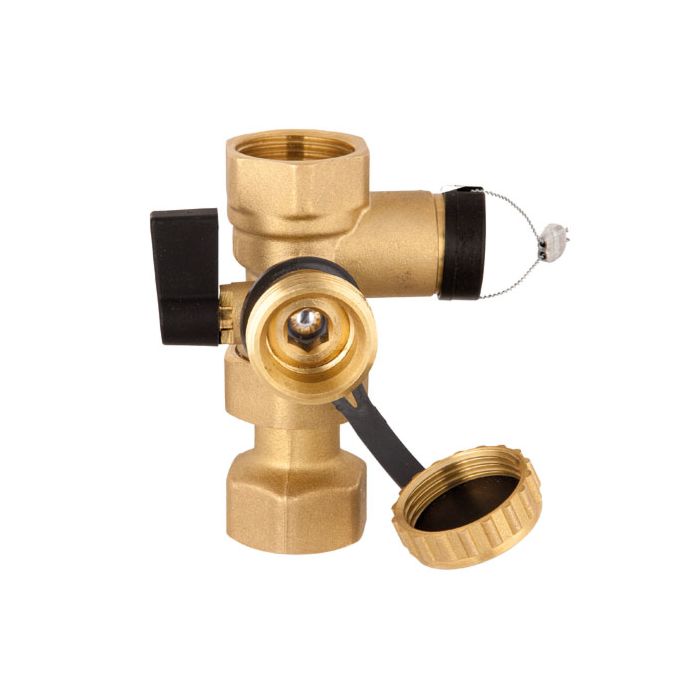

Afriso cap valve 77949
- for membrane expansion vessels in heating systems according to EN 12828 and solar systems
- to be installed at the water inlet of the expansion vessel
- Cap valve with connection screw
- the shut-off valve is secured with a cap and seal against accidental closing
- The integrated KFE tap is used to empty the expansion vessel
- For this purpose, a hose with a union nut can be screwed on
- During the prescribed functional test or replacement, the expansion vessel can be shut off from the heating system and drained with a high draining capacity (time saving)
- Operating pressure max. 10 bar
- Temperature range 0/120 °C
- Emptying capacity Kvs 1
- 5 m³/h
