Afriso boiler safety group 77581 Maxi G 1 IG, max. 100 kW, 3 bar, with insulation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

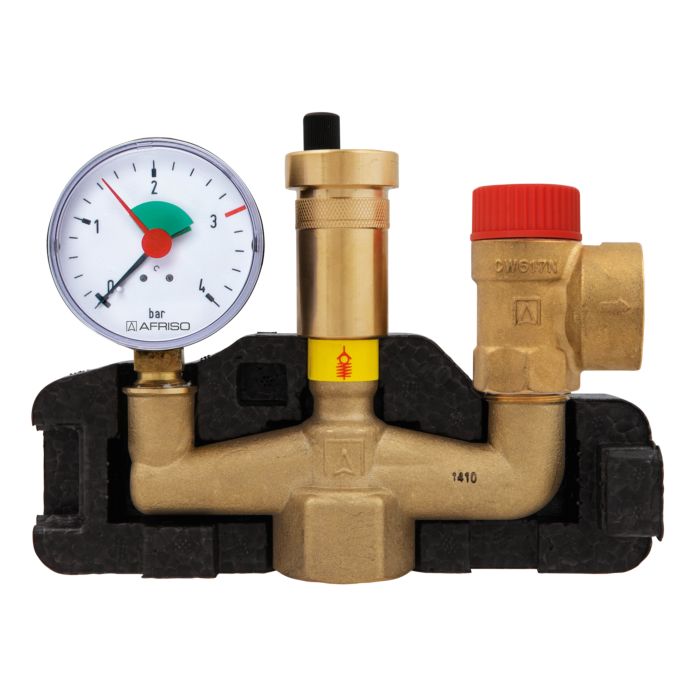

Afriso boiler safety group 77581
- for closed heating systems according to EN 12828
- Completely permanently mounted and leak-tested boiler safety group
- consisting of dashboard as crosspiece
- Heating pressure gauge to display the system pressure
- Quick vent with Aquastop and diaphragm safety valve MS
- with self-sealing assembly valve for easy replacement of the quick vent
- the insulation also serves as safe transport packaging
- Temperature range max 120 °C
- 230x190x105mm
- Insulation Polypropylene EPP
- Brass fittings
- Diaphragm safety valve made of brass (PTFE sealing ring rotatable
- Response pressure 3 bar)
- Display range 0/4 bar
- Ø 63 mm-G 1/4 wheel
- Quick vent inlet G 3/8
- Nominal pressure 12 bar
Downloads (2)
Product Safety
Manufacturer
AFRISO-EURO-INDEX GmbH
E-Mail
info@afriso.de
Address
Lindenstraße 20
74363 Güglingen
Germany
