Afriso boiler distributor 77313 KSV 125-5 5 heating circuits
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 77313
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

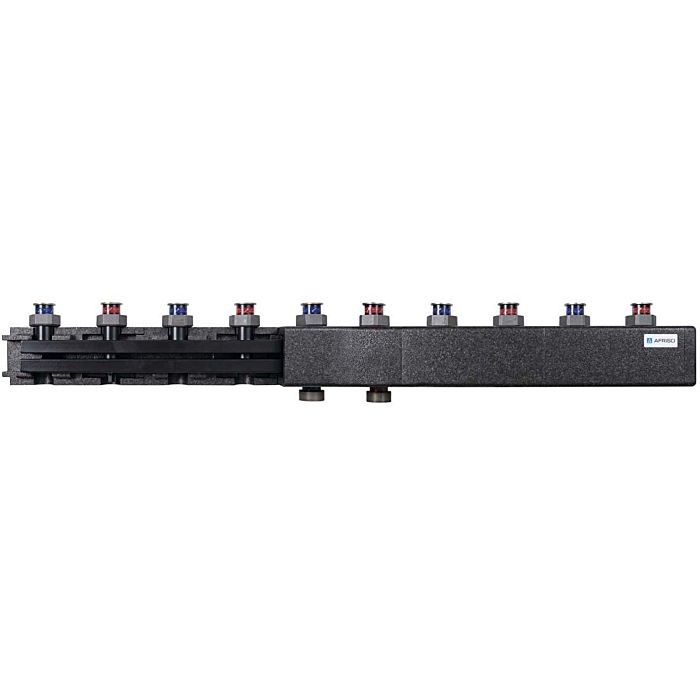

Afriso boiler distributor 77313
- for the distribution of heating water in closed heating systems according to EN 12828 from the boiler to the PrimoTherm heating pump groups
- as a combined flow and return distributor for heating pump groups
- Connection to the boiler via G 1 1/2 threaded connector downwards
- Connection to heating pump group with flat sealing union nut G 1 1/2
- factory tested for leaks
- maintenance-free
- Wheelbase 125 mm
- Temperature range medium max. 110 °C
- Throughput 3
- 0 m³/h
- System pressure max. 6 bar
- Insulation made of polypropylene EPP
- Boiler distributor with 2x wall bracket and insulation
Downloads (2)
Product Safety
Manufacturer
AFRISO-EURO-INDEX GmbH
E-Mail
info@afriso.de
Address
Lindenstraße 20
74363 Güglingen
Germany
