Afriso air separator 77850 combination, fully assembled
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 77850
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

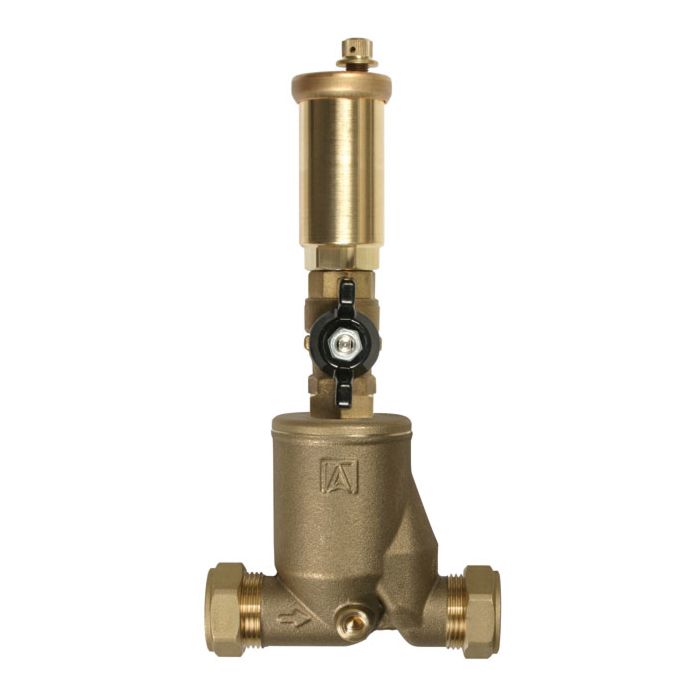

Afriso air separator 77850
- with solar quick vent
- for use in thermal solar systems
- to separate air accumulations (air bubbles) from the solar fluid
- Air separator separates the air contained in the heat transfer medium
- the air collects in the housing and can be discharged by operating the ball valve via the solar quick vent on the screw-in thread G 3/8
- Temperature range medium max. 150 °C
- System pressure max. 6 bar
- Connections on both sides: compression fitting for Cu pipe Ø 22 mm
