Allmess Integral-V UltraLite heat meter screw connection 566423001706HA HA, qp 1.5, TF 5.2, DN 15
Short notice delivery
delivery time: 10-28 working days
Shipping Cost Points: 20
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

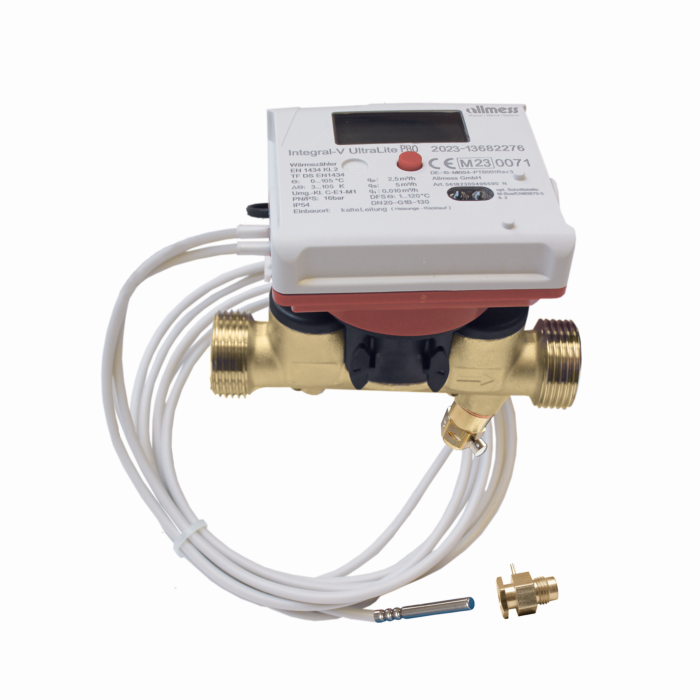

Allmess Integral-V UltraLite heat meter screw connection 566423001706HA
- Multi-range ultrasonic compact heat meter
- standard with a high sampling rate
- Temperature sensor for installation in measuring points according to EN 1434 or immersion sleeves 5
- 2mm with 1
- 6 m cable length
- 18 end-of-month values
- optical interface
- with screw connection flow sensor in ultrasonic technology
- Calculator (removable) and temperature sensors
- sealing and sealing material
- with MID approval
- horizontal and vertical mounting
- also overhead
- prepared for communication modules
- for retrofitting/calibration exchange and new systems (5th
- 2 mm pocket sensor with direct measurement adapters)
- for retrofitting/calibration replacement (5th
- 0 mm immersion sleeve sensor without direct measurement adapter)
