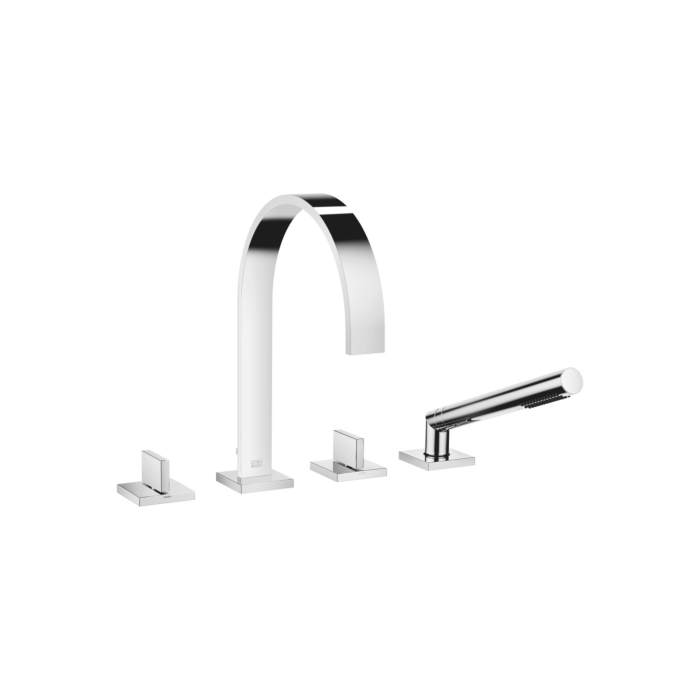

Dornbracht baths 4 hole MEM

  • Article number: 2753278200
  • Projection 220 mm
  • rigid spout
  • free spout
  • Backflow preventer in the shower outlet
  • automatic bath / shower changeover
  • Bathroom ceramics valves with Bathroom ceramics tops 2000 / 2 "
  • Hand shower with anti-limescale system and backflow preventer
  • Metal shower hose 2250 mm, chrome-plated, two parts (500 mm pressure hose + 1750 mm shower hose with rotatable cone)
  • Compression fitting
  • Single rosette 60 x 60 mm
  • Faucet height 300 mm
  • Height up to aerator 170 mm
  • Hole diameter of side valve / hand shower 32 mm
  • Hole diameter spout 32 mm
  • 20 ° bend
  • 2x pressure hose 2000 / 2 "x 2000 / 2" x 400 mm
  • Hose duct
  • Flow rate hand shower max. 9 l / min
Later shower hose replacement possible without removing the tap due to the two-part design.
The Perfecto mounting system 1261097090 is recommended for optimal installation.
Intrinsically safe against backflow.
