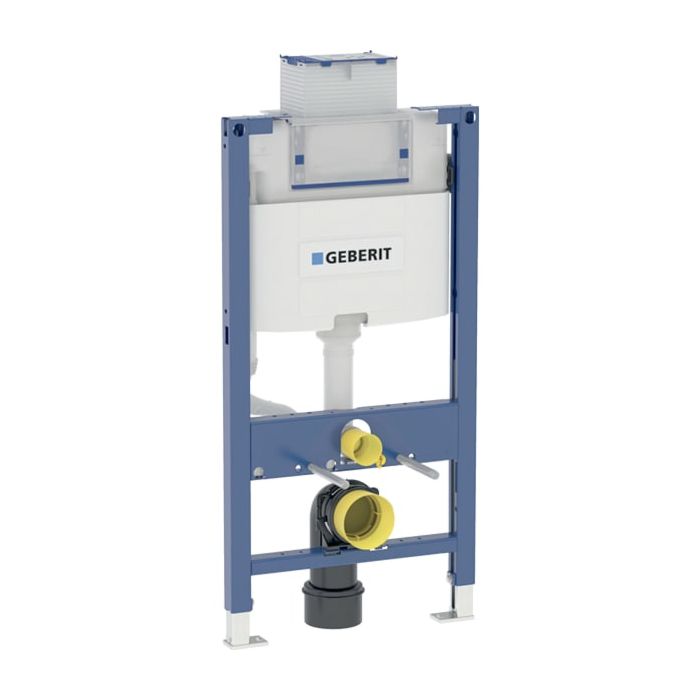

Geberit Duofix Omega wall-mounted toilet element 111030001

  • for drywall construction
  • for installation in partial-height pre-wall installations
  • in part-height Duofix system walls
  • for wall-mounted toilets with connection dimensions according to DIN EN 33:2011-11 and with projection up to 62 cm
  • for dual flush
  • for floor structures 0-20 cm
  • self-supporting frame powder-coated
  • Frame with drill holes Ø 9 mm for fastening in timber frame construction
  • Frame prepared for supports for toilet ceramics with small support surface
  • Footrests galvanized adjustable 0-20 cm
  • footrests with anti-slip properties
  • footplates rotatable
  • Depth suitable for installation in U-profiles UW 50 and UW 75 and Duofix system rails
  • Connection bend can be mounted in different depth positions without tools - adjustment range 45 mm
  • Fastening connection bend soundproof
  • UP cisterns with top or front actuation
  • condensate-proof
  • immediate rinsing possible with factory setting
  • Installation/maintenance work on the concealed cistern without tools
  • Water connection on the left side or left rear
  • Construction protection for service opening protects against moisture
  • dirt and can be cut to length
  • equipped with empty pipe for water supply for connecting AquaClean shower toilets
  • with mounting option for electrical connection
  • calculation flow 0
  • 11 l/s
  • minimum flow pressure 50 kPa
  • flow pressure 10-1000 kPa
  • max. operating temperature water 25 °C
  • Flushing volume factory setting 6 and 3 l
  • large flush volume setting range 4
  • 5/6/7
  • 5 l
  • small flush volume setting range 3-4 l
  • consisting of water connection R 1/2
  • MeplaFix-capable
  • with integrated angle valve and handwheel
  • construction protection for service opening
  • 2x protective plugs
  • connection set for WC-Ø 90 mm
  • 90° connecting bend made of PE-HD-Ø 90 mm
  • Transition sleeve made of PE-HD-Ø 90/110 mm
  • 2x threaded rods M12 and fastening material
