Geberit Setaplano shower floor drain 154057001 Ø 40 mm, for screed height at the inlet 94-114mm
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 154057001
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

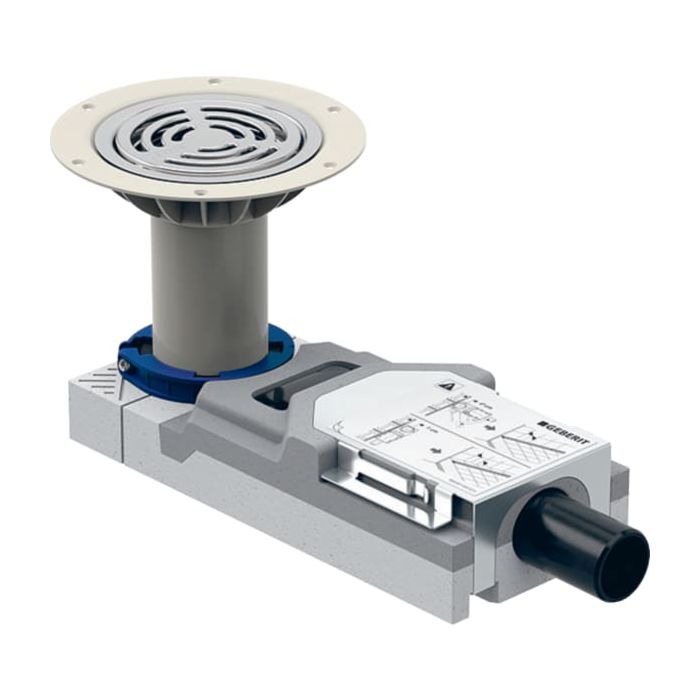

Geberit Setaplano shower floor drain 154057001
- for installation inside buildings
- for vinyl (PVC) floor coverings up to a thickness of 3 mm
- for draining floor-level showers
- suitable for barrier-free construction
- for collecting the waste water from a single shower head
- for installation with very little floor structure
- for screed heights> = 94 mm at the inlet
- In contrast to the requirements of EN 1253, the water seal height is only 30 mm
- Stainless Steel made from match0
- Basic body made of EPS for sound decoupling and odor trap absorption
- Blade for vinyl (PVC) flooring
- Load capacity class K 3 (3 kN)
- with protection cover with assembly tool
- Comb insert
- rust
- PE-HD odor trap
- Fastening material
- blade
