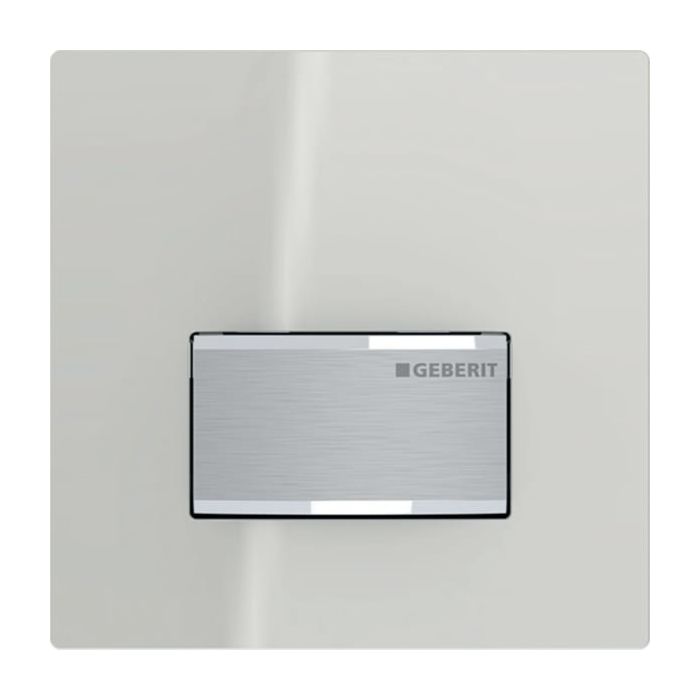

Geberit Urinal control 116016JL5 pneumatic, sand-gray
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 116016JL5
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Geberit Urinal control 116016JL5
- for manual flush actuation of urinals for assembly elements for Urinal with actuation from the front for assembly elements for Urinal with actuation from above
- For installation in basic sets for urinal controls from year of construction 2009
- Zinc die-cast actuator plate with safety catch
- Purge time setting with air nozzles (pneumatic)
- low release force
- low lifting movement
- Rinsing triggered when the actuating button is released
- Flush volume via the throttle screw of the basic installation set up to 1930
- 5 l can be reduced per flush
- Fittings group II according to DIN 4109
- Actuating force <12 N
- Calculation 1930
- 3 l / s
- Flush time setting range 4/8/12 s
- Minimum flow pressure 100 kPa
- Flow pressure 100 - 800 kPa
- max.test pressure air / inert gas 300 kPa
- Test pressure water 1600 kPa
- Operating temperature water 30 ° C
- Flow at 100 kPa with flow 1930
- 24 l / s
- Flow at 100 kPa without flow 1930
- 3 l / s
- relative humidity <100%
- consisting of actuator Typ 50
- Pneumatic flush actuation pre-assembled on the mounting frame
- Pneumatic valve and fastening material
