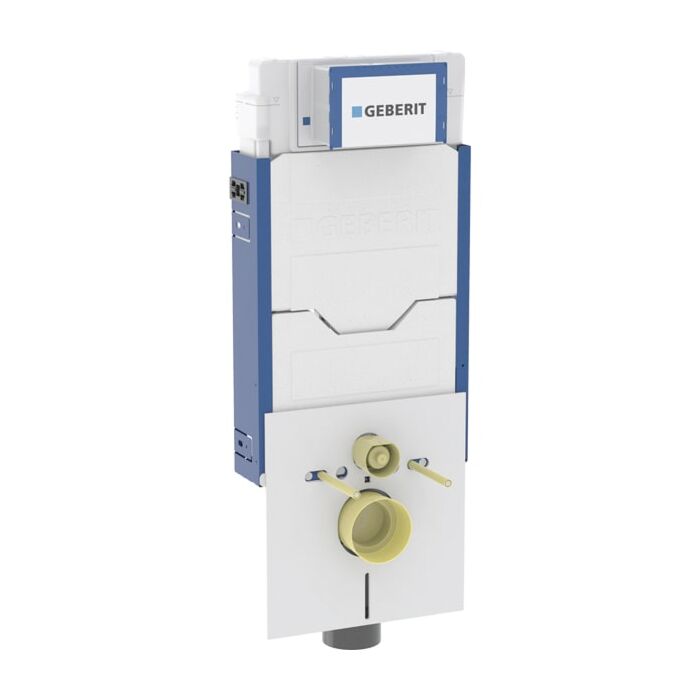

Geberit wall WC element Kombifix 110300005 height 108 cm, with Sigma concealed cistern

Geberit wall WC element Kombifix 110300005

• Article number: 110300005
• Dimensions (W x H x D): 420 x 760 x 120 mm
• Height: 108 cm
• with Sigma UP cistern

application area

• For wet construction element with cistern UP320 for Sigma, Samba, Twist, Tango
• For installation in partial or room-high pre-wall installations
• Wall-mounted toilets with connection dimensions according to DIN EN 33:2011-11
• For 1-volume, 2-volume or flush-stop flushing

Characteristics

• Mounting frame powder-coated, with 4 mounting brackets
• connecting bend can be mounted without tools
• Fastening connection bend can be mounted from the front without tools
• UP320 concealed cistern with front actuation, condensate-proof
• flush volume adjustable
• Immediate rinsing possible with factory settings
• Installation and maintenance work on the concealed cistern without tools
• Universal water connection R 1/2 inch rear or top with integrated angle valve and handwheel (MeplaFix compatible)
• Construction protection for service opening protects against moisture and dirt
• Construction protection for service opening can be cut to length
• Equipped with empty pipe for water supply for connecting Geberit AquaClean shower toilets
• with soundproofing set
• with filling segment
• with threaded rods M12 for ceramic fastening
• with connection set, diameter: 90 mm
