Gebo Series 150 screw connection 01.150.02.05 1 1/2" x 48.3 mm, for steel pipe
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 10
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

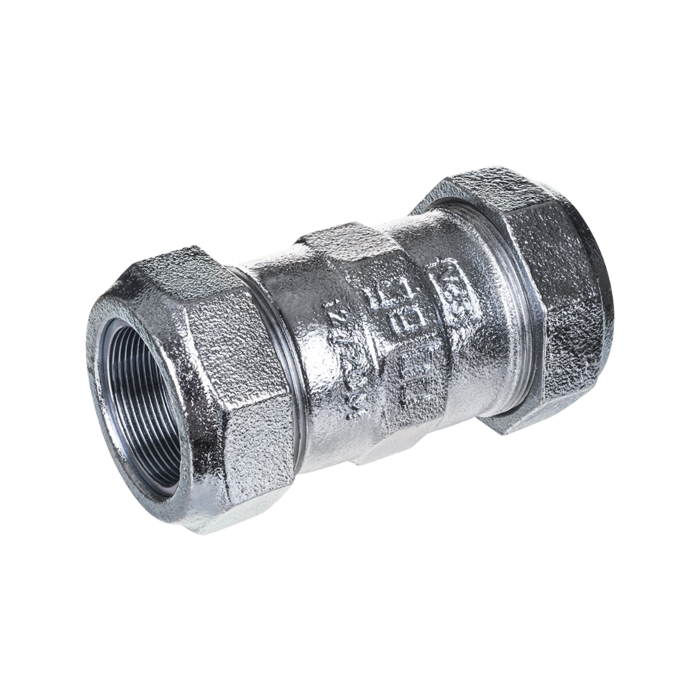

Gebo series 150 screw connection 01.150.02.05
- Malleable iron clamp connector
- for clamping on both sides
- for steel pipe
- according to DIN EN 10255 and DIN EN 10220 series 1
- Media are water and gas (outside buildings)
- Compressed air and heating oil up to 2" (note TRBF!)
- Temperatures for drinking water up to 25 °C
- with heating water up to 80 °C
- for gas -20 to +60 °C and for oil 40 °C
- Pressure levels for water PN 10 (up to 3/4") or PN 16 (from 1")
- for gas PN 5
- Compressed air PN 12
- 5
- with oil PN 6
- Tests on water W534
- DVGW Reg. No.: DW-8511AU2216
- for gas DIN 3387-1
- DVGW reg. no. NG-4502AP1454
- VdS tested from DN 25 (fire extinguishing pipes)
- For heating oil, building authority approval DIBT
- Approval number: Z-38.4-212
