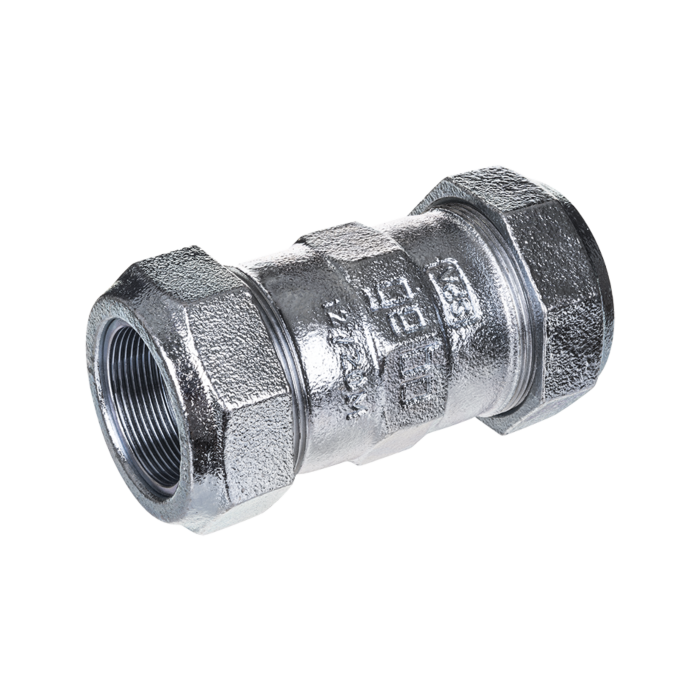

Gebo series 150 screw connection 01.150.02.06
  • Malleable iron clamp connector
  • for clamping on both sides
  • for steel pipe
  • according to DIN EN 10255 and DIN EN 10220 series 1
  • Media are water and gas (outside buildings)
  • Compressed air and heating oil up to 2" (note TRBF!)
  • Temperatures for drinking water up to 25 °C
  • with heating water up to 80 °C
  • for gas -20 to +60 °C and for oil 40 °C
  • Pressure levels for water PN 10 (up to 3/4") or PN 16 (from 1")
  • for gas PN 5
  • Compressed air PN 12
  • 5
  • with oil PN 6
  • Tests on water W534
  • DVGW Reg. No.: DW-8511AU2216
  • for gas DIN 3387-1
  • DVGW reg. no. NG-4502AP1454
  • VdS tested from DN 25 (fire extinguishing pipes)
  • For heating oil, building authority approval DIBT
  • Approval number: Z-38.4-212
