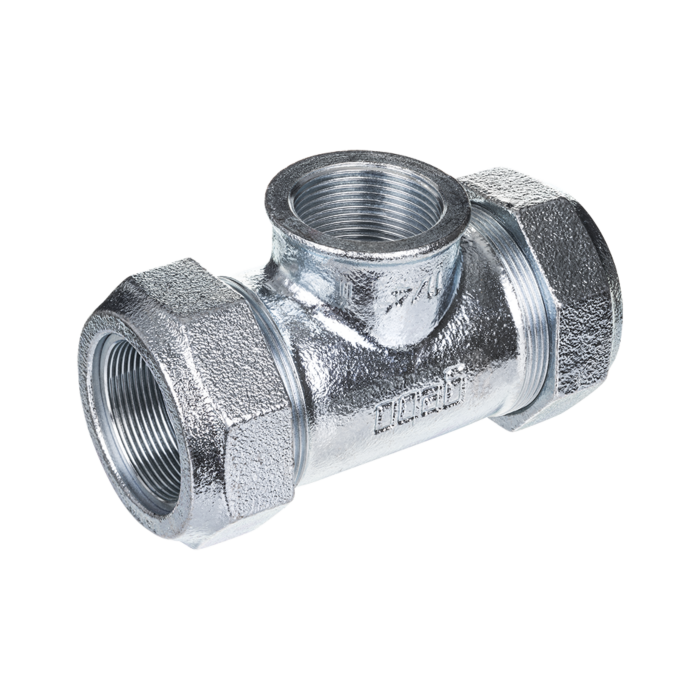

Gebo Series 150 screw connection 01.150.04.01 21.3 mm x 1/2" x 21.3 mm, for steel pipe
Short notice delivery
delivery time: 10-28 working days
Shipping Cost Points: 10
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Gebo series 150 screw connection 01.150.04.01
- Malleable iron clamp connector
- for clamping on both sides
- Leaving with IG
- for steel pipe
- according to DIN EN 10255 and DIN EN 10220 series 1
- Media is water
- Gas (outside buildings) and compressed air
- Heating oil up to 2" (note TRBF!)
- Temperatures for drinking water up to 25 °C
- with heating water up to 80 °C
- for gas -20 to +60 °C and for oil 40 °C
- Pressure levels for water PN 10 (up to 3/4") or PN 16 (from 1")
- Gas PN 5
- Compressed air PN 12
- 5
- Oil PN 6
- Tests water W534
- DVGW reg. no. DW-8511AU2216
- Gas DIN 3387-1
- DVGW reg. no. NG-4502AP1454
- Heating oil building authority approval DIBT
- Approval number: Z-38.4-212
Downloads (1)
Product Safety
Manufacturer
GEBO Armaturen GmbH
E-Mail
info@gebo.de
Address
Gold-Zack-Straße 7-9
40822 Mettmann
Germany
