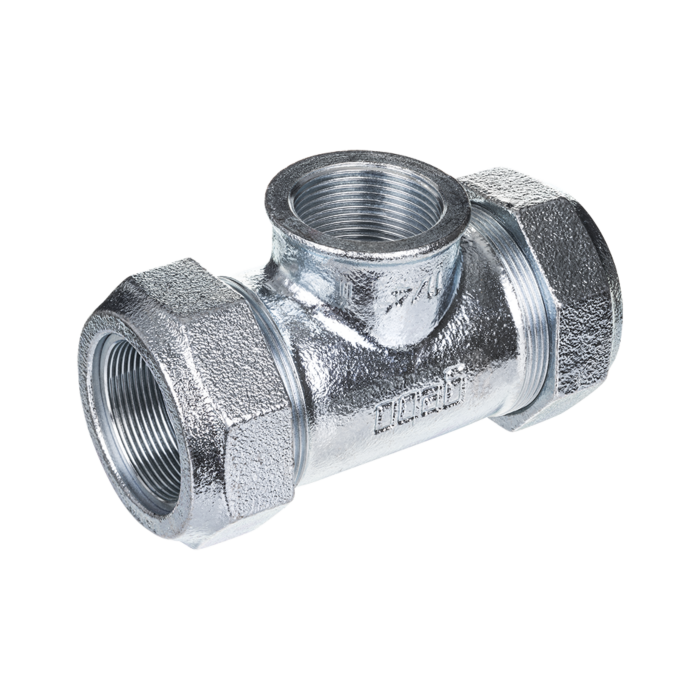

Gebo series 150 screw connection 01.150.04.04
  • Malleable iron clamp connector
  • for clamping on both sides
  • Departure with IG
  • for steel pipe. According to DIN EN 10255 and DIN EN 10220 series 2000
  • Media are water
  • Gas (outside of buildings) and compressed air
  • Heating oil up to 2 "(observe TRBF!)
  • Temperatures for drinking water up to 25 ° C
  • for heating water up to 80 ° C
  • for gas -20 to +60 ° C and for oil 40 ° C
  • 2000 for water PN 10 (up to 3/4 ") or PN 16 (from 2000 ")
  • Gas PN 5
  • Compressed air PN 12
  • 5
  • Oil PN 6
  • Tests water W534
  • DVGW reg. No. DW-8511AU2216
  • Gas DIN 3387- 2000
  • DVGW reg. No. NG-4502AP1454
  • Heating oil building authority approval DIBT
  • Approval no .: Z-38.4-212
