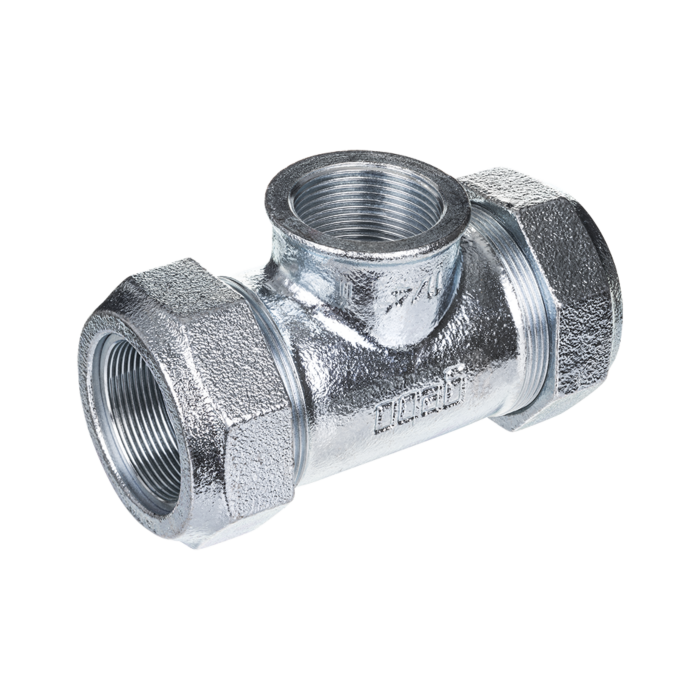

Gebo series 150 screw connection 01.150.04.06
  • Malleable iron clamp connector
  • for clamping on both sides
  • Leaving with IG
  • for steel pipe
  • according to DIN EN 10255 and DIN EN 10220 series 1
  • Media is water
  • Gas (outside buildings) and compressed air
  • Heating oil up to 2" (note TRBF!)
  • Temperatures for drinking water up to 25 °C
  • with heating water up to 80 °C
  • for gas -20 to +60 °C and for oil 40 °C
  • Pressure levels for water PN 10 (up to 3/4") or PN 16 (from 1")
  • Gas PN 5
  • Compressed air PN 12
  • 5
  • Oil PN 6
  • Tests water W534
  • DVGW reg. no. DW-8511AU2216
  • Gas DIN 3387-1
  • DVGW reg. no. NG-4502AP1454
  • Heating oil building authority approval DIBT
  • Approval number: Z-38.4-212

Downloads (1) Chevron Down

Product Safety Chevron Down

Manufacturer
GEBO Armaturen GmbH
E-Mail
info@gebo.de
Address
Gold-Zack-Straße 7-9
40822 Mettmann
Germany
