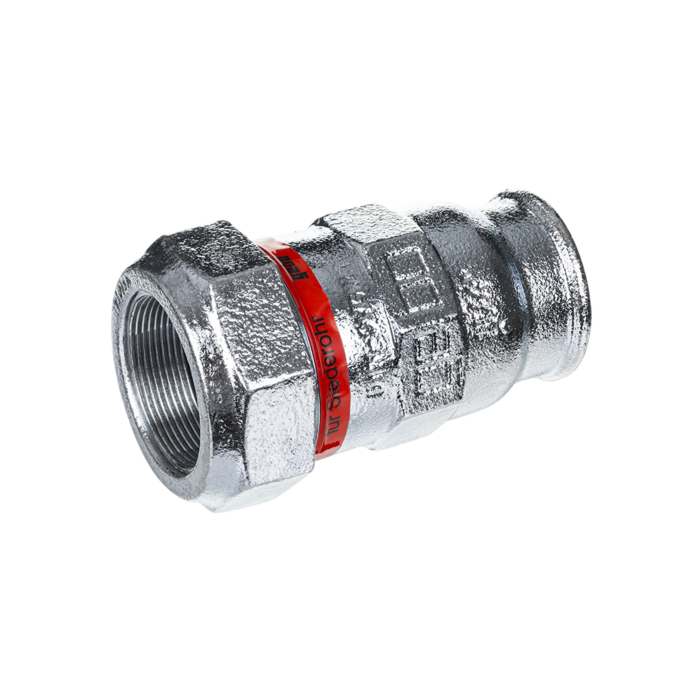

Gebo series 150 screw connection 02.150.01.04445
  • Malleable iron clamp connector
  • with IG
  • for boiler pipe. According to DIN EN 10220 row 2 and 3
  • Media are water
  • Compressed air
  • Heating oil only 57 mm (note TRBF!)
  • Temperatures for heating water up to 80 ° C and for oil: 40 ° C
  • Pressure levels: water PN 6
  • Compressed air PN 12
  • 5
  • Oil PN 6
  • Tests for heating oil for 57 mm building authority approval DIBT
  • Approval no .: Z-38.4-212
