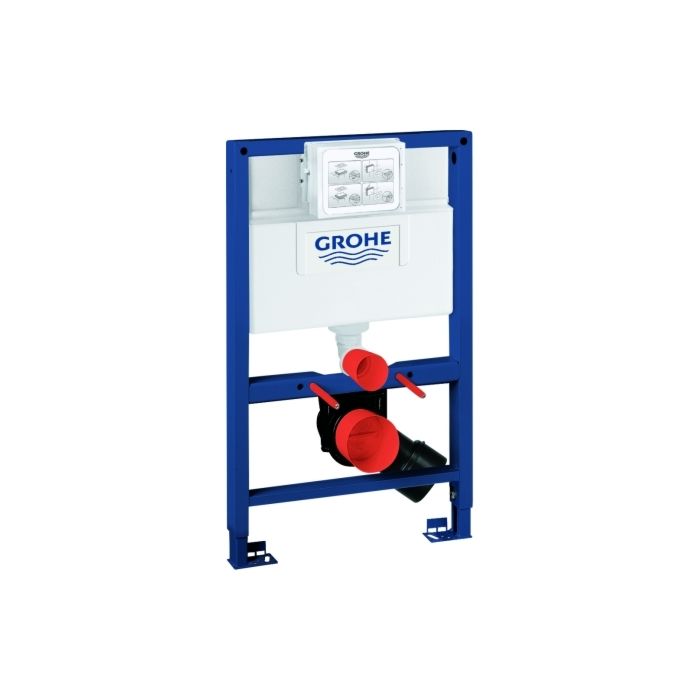

GROHE Rapid SL for WC with flushing cistern 6 - 9 l
for on-the-wall installations or studded walls
0.82 m installation height
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
for single or rail installation
quick adjustment, lockable
fixing material
TÜV approved
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend Ø 80 mm
depth adjustable
reducer Ø 80/100 mm
inlet and outlet connecting set
flushing cistern 6 - 9 l
pneumatic discharge valve offering 3 modes of operation:
dual flush or start/stop or non-interruptible
front or top actuation
water supply from left/right or back
low noise (group I acc. to German Noise Specification)
test approval applied for
insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
shortable inspection shaft incl. protection
during construction phase
without accessories for on-the-wall installation
without wall plate/actuation
GROHE EcoJoy® technology for less water and perfect flow
