Grohe Rapid SL Compact WC element 38536001 BH 2000 , 13 m, cistern GD 2, for pre-wall / stud wall mounting
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Part Number: 38536001
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

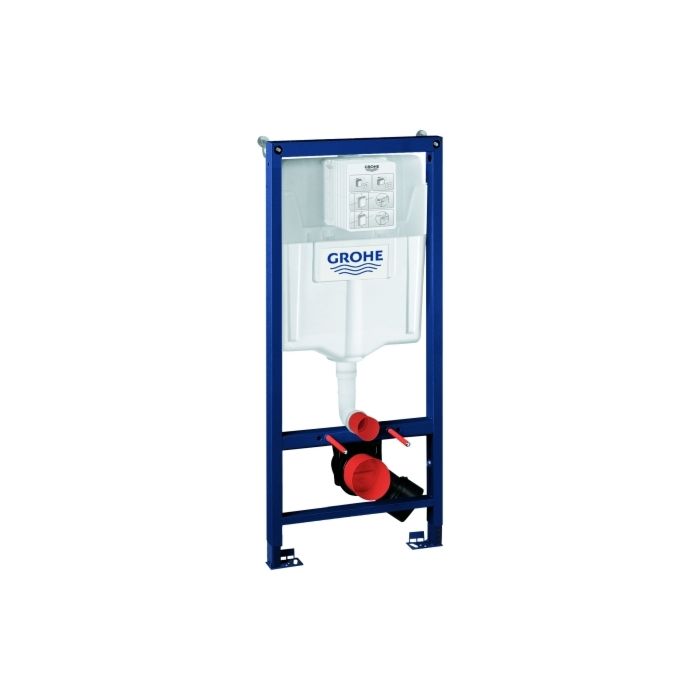

Grohe Rapid SL Compact WC element 38536001
- for wall or stud wall mounting
- Steel frame completely pre-assembled
- with quick adjustment and height protection
- Fastening material
- TÜV tested
- 2 WC retaining bolts
- Ceramic fastening
- WCs with a contact surface <205 mm require support set 38 779
- Screw spacing 180/230 mm
- Drain bend Ø 90 mm
- depth adjustable
- Reducer Ø 90/110 mm
- Inlet and outlet fittings
- Cistern GD 2
- 6-9 l
- factory setting 6l and 3l
- Pneumatic drain valve with two functions: 2 quantities or start & stop
- Water connection from the left / right / rear
- Valve group I
- condensation insulated
- Water connection DN 15
- with integrated angle valve and tool-free hose screw connection
- inspection shaft can be assembled without tools
- with shell protection
- with Accessories for wall mounting
- Inspection shaft 40 911 000 for small cover plates to be ordered separately
