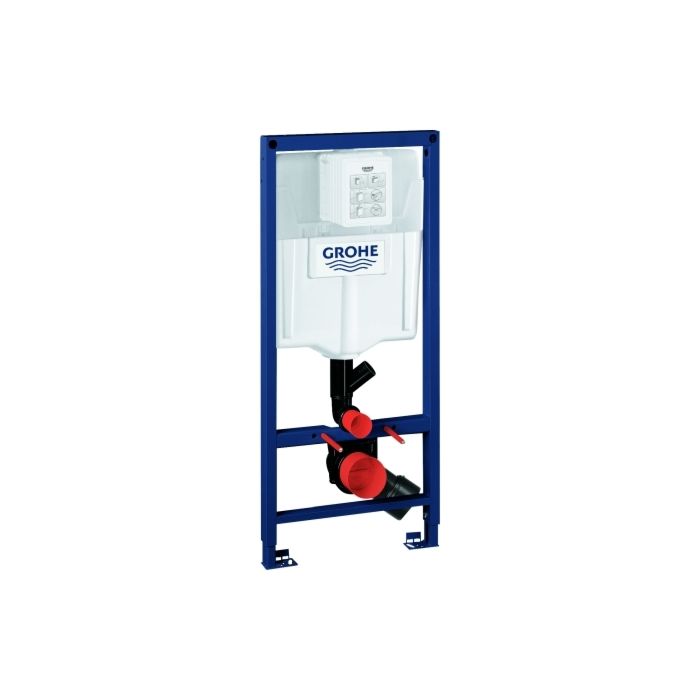

Grohe Rapid SL wall WC element 39002000 height 113cm, for external odor extraction
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 450
Part Number: 39002000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Grohe Rapid SL wall WC element
- Item number: 39002000
- Rapid SL for Compact WC
- GD 2 cistern
- with flushing pipe for external odor extraction
- with a small inspection opening
- 2000 , 13 m 2000
- for pre-wall or stud wall mounting
- Steel frame, powder-coated, self-supporting
- for dry cladding, completely pre-assembled
- fixed object connections
- for single or rail mounting
- with quick adjustment and fall protection
- Fastening material
- TÜV approved
- 2 WC retaining bolts
- Ceramic attachment
- Distance between screws 180/230 mm
- PP flow DN 80
- depth adjustable
- DN 80 / 100
- Inlet and outlet set
- Cistern GD 2, 6 - 9 l
- factory setting 6l and 3l
- Flushing pipe with connection for odor extraction 50 mm
- pneumatic drain valve with three functions:
- 2 quantities or start & stop or not interruptible
- Water connection from left / right / rear
- Faucet group I
- DIN checked
- insulated against condensation
- Water connection DN 15 with integrated corner valve
- and tool-free hose screw connection
- Access shaft can be installed without tools
- Shell protection, can be used vertically or horizontally
- without wall mounting
