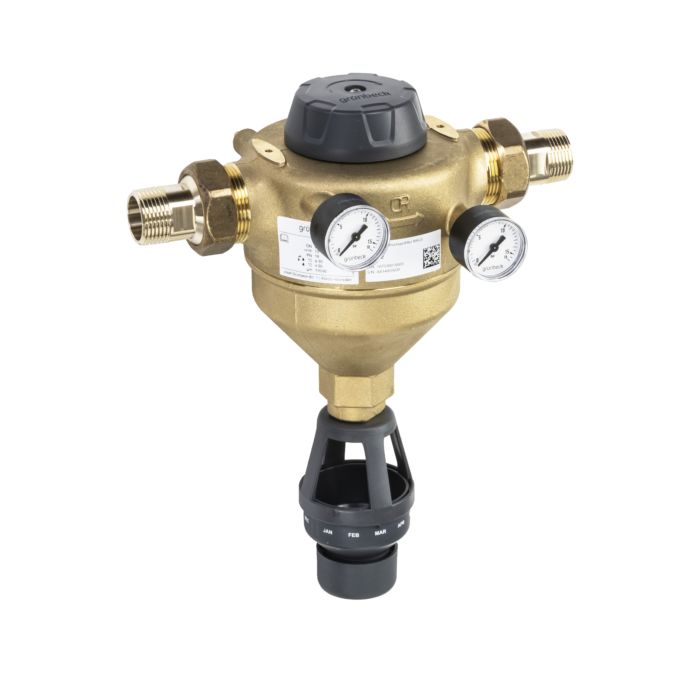

Grünbeck backwash filter 107000010000 25, DN 25, with screw connections
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Grünbeck backwash filter 107000010000
- Water temperature <= 90 °C
- Water temperature <= 30 °C when used in drinking water applications (DVGW)
- Pressure range <= 16 bar
- Pressure range <= 10 bar at media temperature of 90 °C
- Not applicable to circulating water treated with chemicals
- not applicable to media such as oils / greases / solvents / soaps and other lubricating media and also not for the separation of water-soluble substances
- Not suitable for installation in vertical water pipes
- Filter housing made of low-dezincification brass
- modular filter element made of plastic with filter fabric (100 µm) made of stainless steel
- Flushing water connection with free outlet according to DIN EN 1717 for DN 50
- Pressure gauge for inlet and outlet pressure
- Flange connection according to DIN EN 1092-1 (without counter flanges and seals)
- all parts in contact with water comply with the Drinking Water Ordinance
- consisting of backwash filter complete including 2 pressure gauges 0-16 bar
- Flange connection
- Flushing water connection and operating instructions
