Grundfos Multilift lifting station 97901130 26.3.2, 2.6 kW, 3x 400 V
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

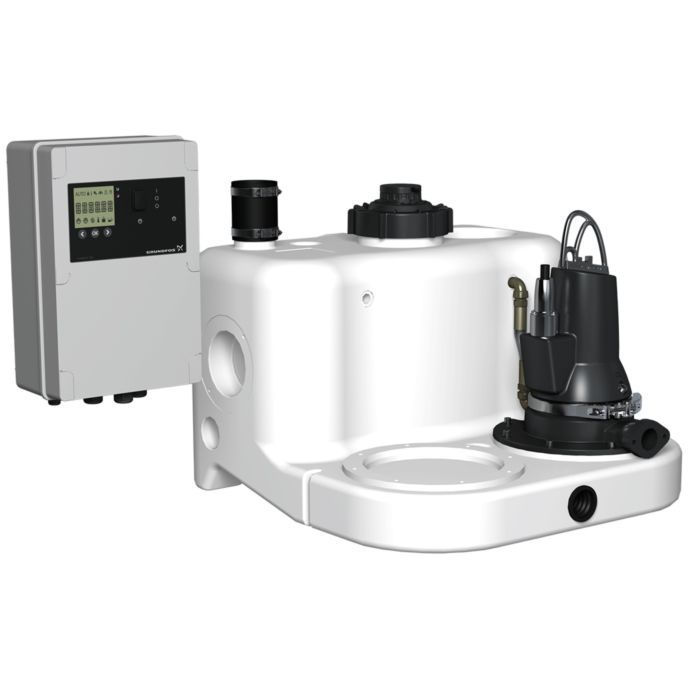

Grundfos Multilift lifting station 97901130
- Plug-in, floodable cutter wheel sewage lifting station with pressure-tight collecting tank
- a pre-assembled pump with built-in motor protection
- Inlet rotary flange with connection sleeve and socket plug seal DN 100
- Connection piece DN 70 for ventilation duct and elastic connector with clamps
- additional inlet sockets in DN 150 and DN 100 and 3 inlet sockets in DN 50
- including a socket seal for connecting a hand diaphragm pump
- Pressure outlet as flange flange DN 32 with IG Rp 1 1/4
- piezoresistive pressure sensor in the control system for millimetre-accurate determination of all required levels
- like normal-
- Flood/alarm level
- Microprocessor control with built-in alarm system
- 10 m cable between pump and control
- 0
- 8 m power cable and protective contact or CEE plug
- Fastening material for buoyancy protection
