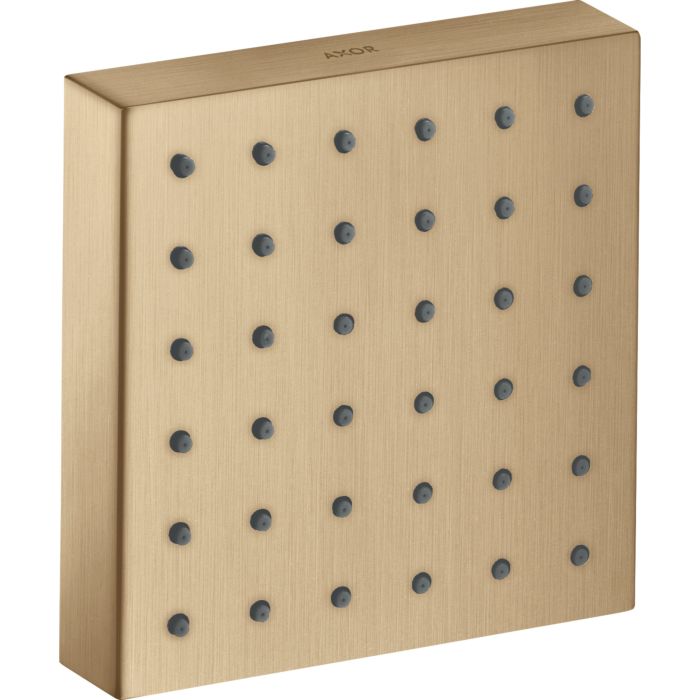

hansgrohe Axor Starck final installation set 28491140
  • Shower head size 120 x 120 mm
  • Beam angle adjustable in five steps
  • usable as head-
  • Neck or
  • Side shower
  • Spray type Rain
  • max. flow rate at 3 bar5
  • 3 l/min
  • Rain jet flow rate at 3 bar 5
  • 3 l/min
  • Minimum flow pressure 1 bar
  • Connection thread G 1/2
  • For installation in direct connection (10 mm distance) the use of the base body # 28486180 is recommended
  • For detached installation, connection via G 1/2 connection nipple possible
  • When installing as a shower head in multiple combinations, the use of the installation aid # 28470180 is recommended
  • suitable for instantaneous water heaters
  • Connection size DN 15
  • metal
  • Quick Clean anti-limescale system
