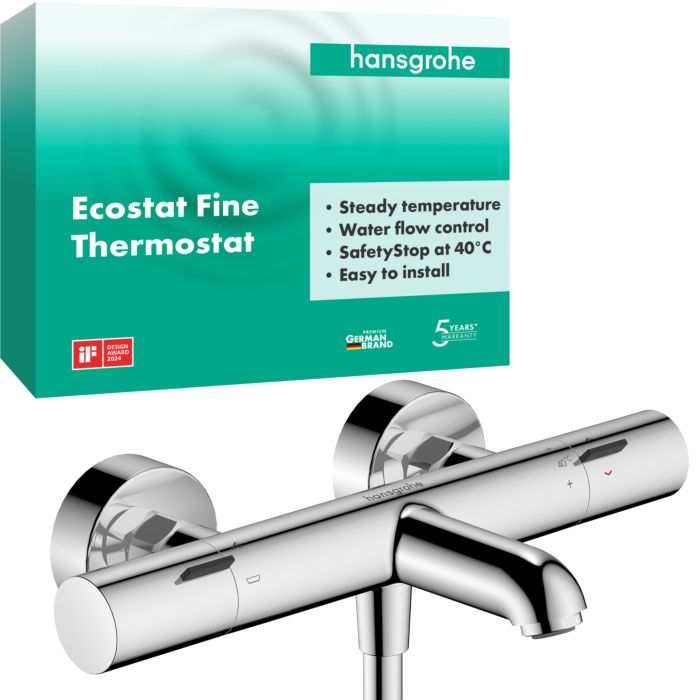

hansgrohe Ecostat Fine bath thermostat 13325000

  • Surface-mounted
  • DN15
  • chrome
  • Projection 177 mm
  • 2 Consumers
  • Temperature and volume control
  • Thermostatic cartridge for temperature control, shut-off/changeover valve
  • Jet type fitting: Normal jet
  • Maximum flow rate at 3 bar: 20 l/min
  • Flow rate for bath inlet at 3 bar: 20 l/min
  • Flow rate for hand shower at 3 bar: 16 l/min
  • Min. operating pressure: 1 bar
  • Max. operating pressure: 10 bar
  • Safety lock at 40 °C
  • Temperature limit adjustable
  • Backflow preventer
  • Intrinsically safe against backflow, according to DIN EN 1717
  • with silencer
  • Material handles: metal
  • Connection size: DN15
  • Connection type: S-connectors, G ½
  • Pitch: 150 ± 12 mm
  • Integrated dirt trap
  • Noise group: I
  • Flow class: C, B
