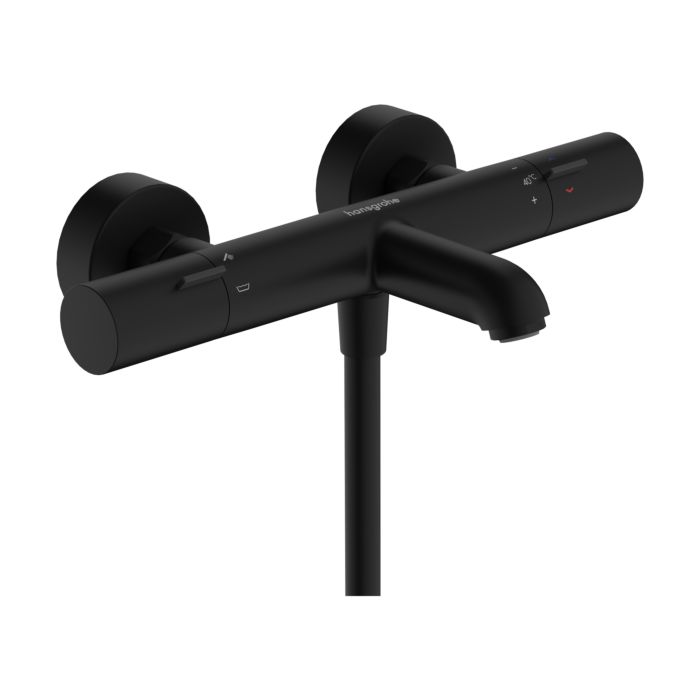

hansgrohe Ecostat Fine bath thermostat 13325670 exposed, DN15, matt black
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
hansgrohe Ecostat Fine bath thermostat 13325670
- Surface-mounted
- DN15
- matt black
- Projection 177 mm
- 2 Consumers
- Temperature and volume control
- Thermostatic cartridge for temperature control, shut-off/changeover valve
- Jet type fitting: Normal jet
- Maximum flow rate at 3 bar: 20 l/min
- Flow rate for bath inlet at 3 bar: 20 l/min
- Flow rate for hand shower at 3 bar: 16 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Safety lock at 40 °C
- Temperature limit adjustable
- Backflow preventer
- Intrinsically safe against backflow, according to DIN EN 1717
- with silencer
- Material handles: metal
- Connection size: DN15
- Connection type: S-connectors, G ½
- Pitch: 150 ± 12 mm
- Integrated dirt trap
- Noise group: I
- Flow class: C, B
