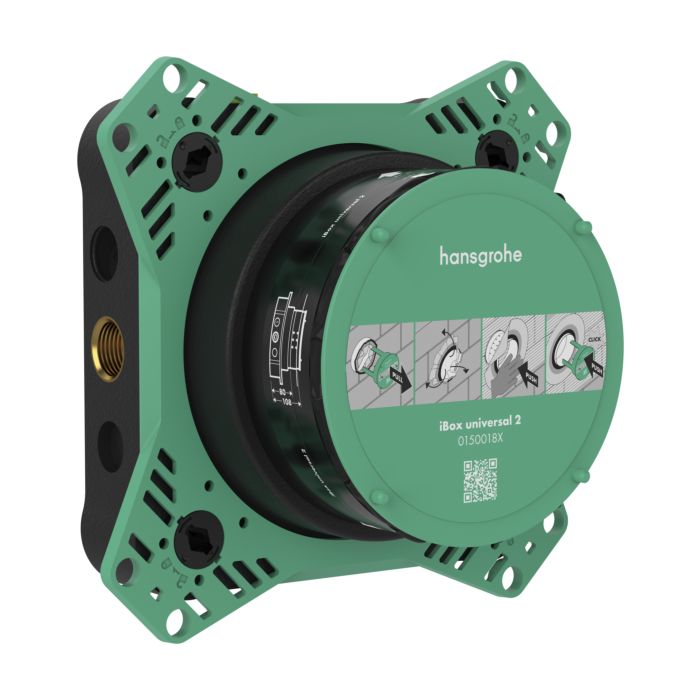

hansgrohe iBox universal 2 base body 01500180

  • Suitable for all new shower, bath and thermostat finish sets for concealed installation
  • Material: low-dezincification brass, EPP foam, heat and sound insulating
  • Connection thread Rp ½
  • Connection size: DN15
  • rotationally symmetrical assembly
  • Sound-insulated installation
  • flexible mounting ring for different mounting situations
  • Mounting ring adjustable in 5 mm increments
  • Mounting ring suitable for front and back installation
  • No shortening necessary thanks to the sliding sleeve
  • Support aid for the spirit level
  • Integrated spirit level for correct horizontal and vertical alignment
  • Sealing sleeve permanently attached
  • Power supply: M16 flexible empty pipe
  • Minimum installation depth: 80 mm
  • Maximum installation depth: 108 mm
  • The adapter plate #13588000 is required to assemble old prefabricated sets (see accessories)
