hansgrohe uBox universal 01001180 for standard installation, DN 50
Short notice delivery
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 01001180
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

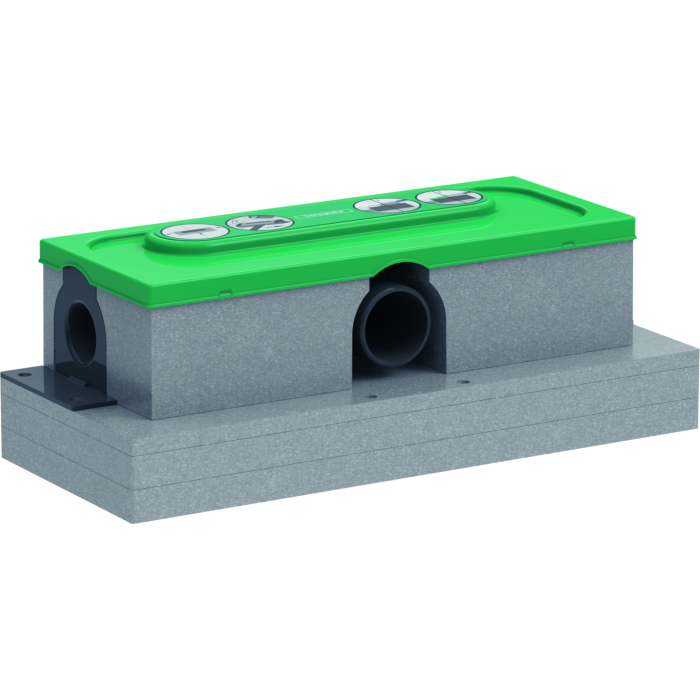

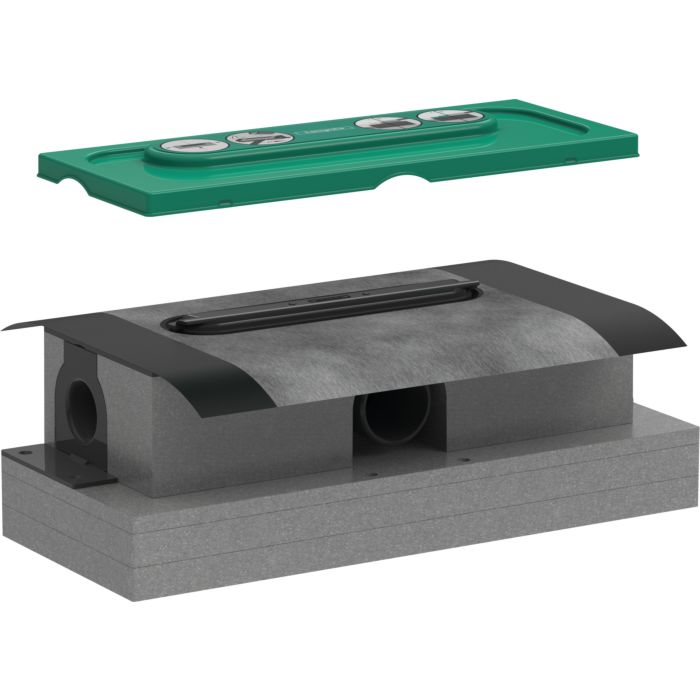

hansgrohe uBox universal drain body 01001180
- consisting of base body
- siphon
- factory pre-assembled sealing fleece
- Height adjustment plates
- Protection cap
- universal base body suitable for all Shower Channel
- Area of application: new construction
- Redevelopment
- Water seal height 50 mm
- Minimum construction height 75 mm
- Alb output with siphon up to 42 l / min
- Drainage capacity with Dryphon up to 60 l / min
- Nominal diameter connection DN 50
- Horizontal towards the outlet
- Connection on 3 sides
- Mounting bracket enables easy attachment to the floor
- height adjustable with the help of the pubic panels
- Wall-mounted mounting type
- free in space
- easy-to-clean siphon
- removable siphon
- EN 1253
