Heimeier connection 0565-50.000 Rp 2000 / 2, corner, two-pipe system
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Part Number: 056550000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

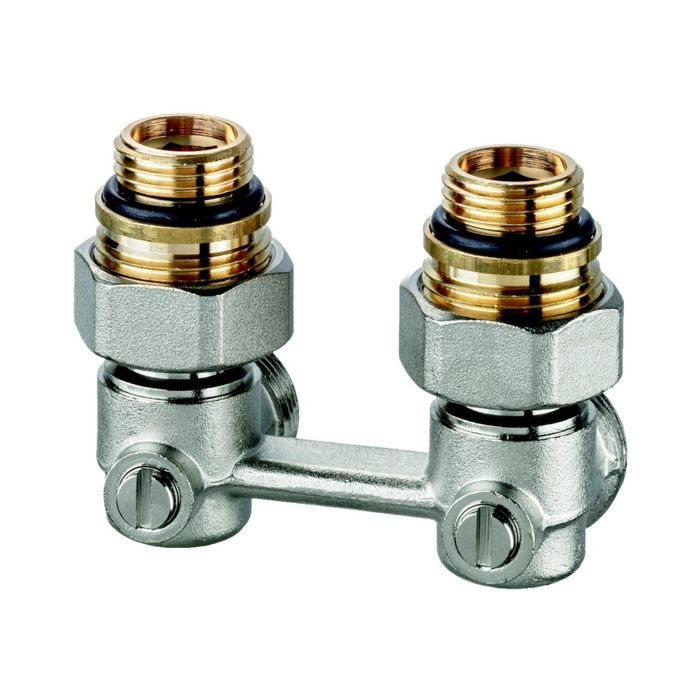

Heimeier connection 0565-50.000
- Screw connection with shut-off ball valves
- For mounting on valve 2000 with connection Rp 2000 / 2 internal thread and G 3/4 external thread
- for two-pipe heating systems
- Shut off function
- DN 15
- PN 10
- Max. Operating temperature 120 ° C
- min. Operating temperature 5 ° C
- Materials valve body brass
- EPDM O-rings
- EPDM flat seals
- Ball seals PTFE
- Surface treatment of valve housing and screw connection nickel-plated
- Connection 2000 for radiator connections R 2000 / 2 or G 3/4
- Pipe connection: the housing with external thread G 3/4 is designed for connection with compression fittings to plastic
- Copper-
- Precision steel or composite pipe
