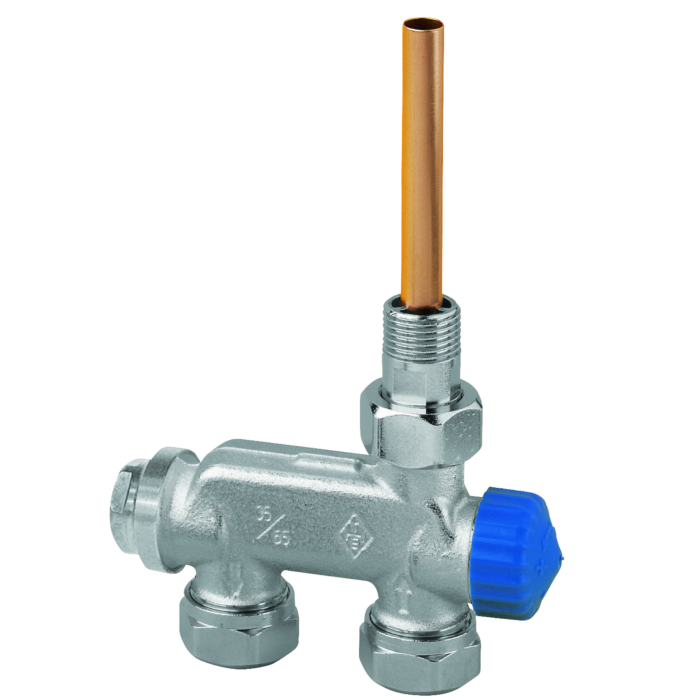

Heimeier EZ valve one-pipe system 3876-02.000
  • EZ valve made of corrosion-resistant gunmetal nickel-plated with immersion tube for Radiators with lower single-point connection
  • Versions in corner and straight form, each for one and two-pipe systems
  • the single-pipe version has a radiator share of 35% in the design case
  • the center distance of the pipe connections is 50 mm
  • the EZ Valves fit all thermostatic heads and actuators
  • the stainless steel spindle is provided with a double O-ring seal
  • the outer O-ring and the entire thermostatic insert can be exchanged under pressure
  • the return shut-off is operated with an 8 mm Allen key
  • With the EZ valve two-pipe it also takes on the function of the presetting
  • Spindle sealing by EPDM O-ring
  • Pipe side connection G 3/4
  • with compression fittings for plastic
  • Copper-
  • Precision steel or composite pipe
  • for Mixer taps only the associated
  • Use marked compression fittings (marking e.g. 15 THE)
  • Permissible operating temperature TB 120 ° C
  • permissible operating pressure PB 10 bar
