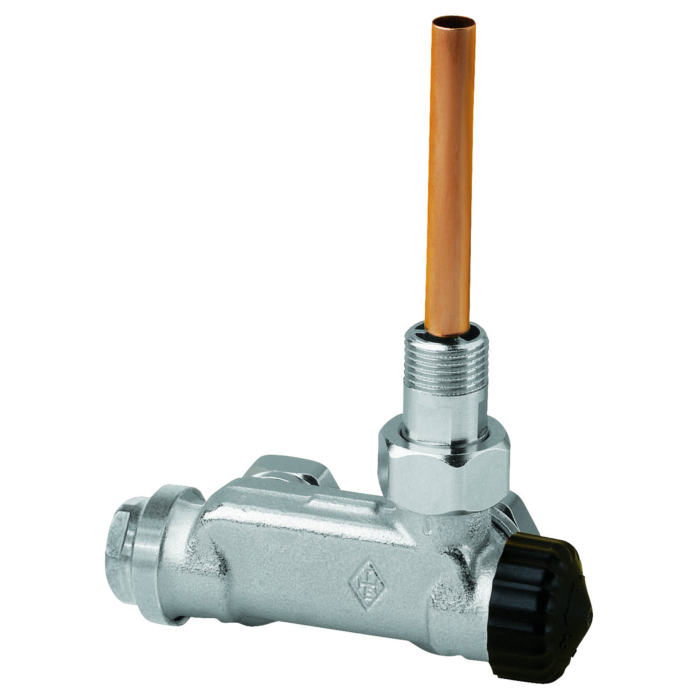

Heimeier EZ valve two-pipe system 3879-02.000 corner, DN 15, protection cap black, gunmetal nickel-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 387902000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier EZ valve two-pipe system 3879-02.000
- EZ valve made of corrosion-resistant gunmetal nickel-plated with immersion tube for Radiators with lower single-point connection
- Versions in corner and straight form, each for one and two-pipe systems
- the single-pipe version has a radiator share of 35% in the design case
- the center distance of the pipe connections is 50 mm
- the EZ Valves fit all thermostatic heads and actuators
- the stainless steel spindle is provided with a double O-ring seal
- the outer O-ring and the entire thermostatic insert can be exchanged under pressure
- the return shut-off is operated with an 8 mm Allen key
- With the EZ valve two-pipe it also takes on the function of the presetting
- Spindle sealing by EPDM O-ring
- Pipe side connection G 3/4
- with compression fittings for plastic
- Copper-
- Precision steel or composite pipe
- for Mixer taps only the associated
- Use marked compression fittings (marking e.g. 15 THE)
- Permissible operating temperature TB 120 ° C
- permissible operating pressure PB 10 bar
