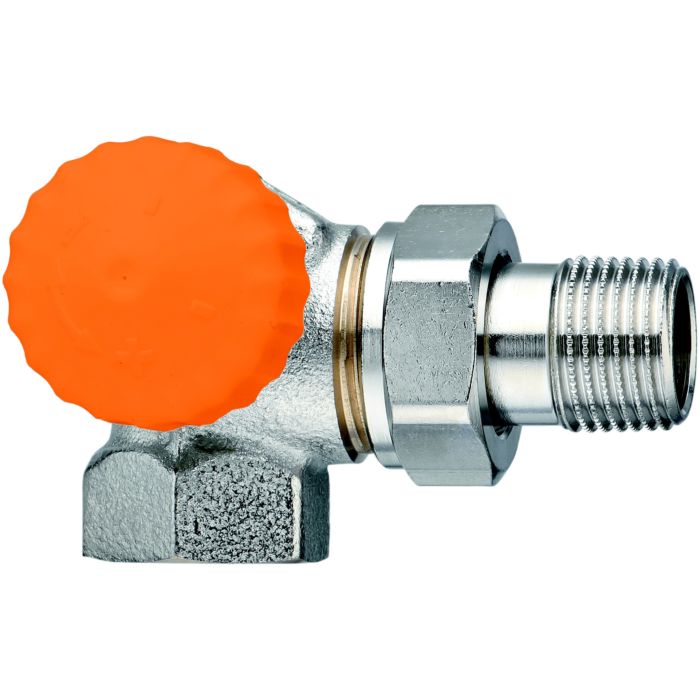

Heimeier Eclipse thermostatic valve body 3933-01.000 Rp 3 / 8xR 3/8, angled corner, nickel-plated gunmetal, left
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier Eclipse thermostatic valve body 3933-01.000
- with automatic flow control
- Housing made of corrosion-resistant
- Dezincification-free gunmetal
- nickel-plated
- with stainless steel spindle and double O-ring seal
- the flow rate is continuously adjustable from 10 to 150 l / h
- the set flow rate is not exceeded
- the valve regulates the flow rate independently of the differential pressure
- Presetting with setting key or open-end wrench SW 11
- the setting values can be read on the front and side
- the complete thermostatic Heimeier can be replaced with the IMI Heimeier assembly device without emptying the system
- the Eclipse thermostatic insert is suitable for all valve housings with II + marking
- Connection internal thread for threaded pipe
- or in connection with compression fittings for copper or precision steel pipes
- Max. Operating temperature 120 ° C
- min. Operating temperature -10 ° C
- permissible operating pressure PB 10 bar
- min. Differential pressure 10-100 l / h: 10 kPa
- min. Differential pressure 100-150 l / h: 15 kPa
- Max. Differential pressure 60 kPA
