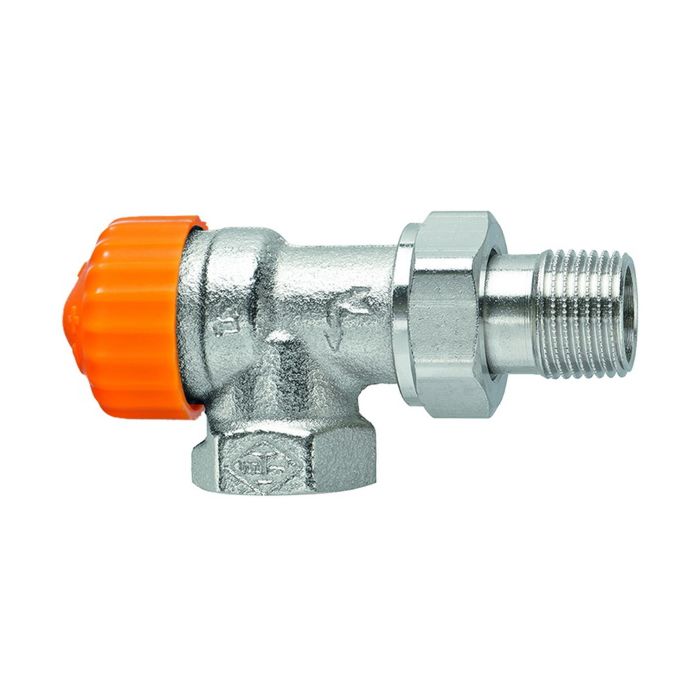

Heimeier Eclipse thermostatic valve body 9113-02.000 Rp 2000 / 2xR 2000 / 2, corner, with automatic flow control
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier Eclipse thermostatic valve body 9113-02.000
- Thermostatic valve bodies for reverse flow direction with and without presetting for use in two-pipe pump heating systems with mixed up flow and return (knocking noises)
- The valve bodies are also suitable for installation in the return connection of high radiators or radiators with a large overall height
- this makes the thermostatic head easier to reach for operation
- Area of application heating and cooling systems
- Features rules
- automatic flow control
- Shut off
- prevents knocking noises if the forward and reverse flow are mixed up
- DN 10-15
- PN 10
- Max. Operating temperature 120 ° C
- with protection cap or actuator 100 ° C
- min. Operating temperature -10 ° C
- Corrosion-resistant gunmetal valve body
- EPDM O-rings
- EPDM valve disc
- Compression spring Stainless Steel
- Brass thermostatic insert
- PPS
- the complete thermostatic insert can be replaced with the assembly device without draining the system
- Spindle Stainless steel spindle with double O-ring seal
- the outer O-ring can be replaced under pressure
- Surface treatment of valve housing and screw connection nickel-plated
- Marking THE
- Flow direction arrow
- DN and II + marking
- without presetting protective cap black
- Black stuffing box
- with pre-setting protection orange
- the housing with internal thread is designed for connection to a threaded pipe
- or in connection with compression fittings on copper precision steel or composite pipe (only DN 15)
- Connection for thermostatic heads and Actuators M30 x 2000
- 5
