Heimeier single- Heimeier valve 50680005 M 28x1.5, AG FPL, for lateral single-point connection
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 50680005
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

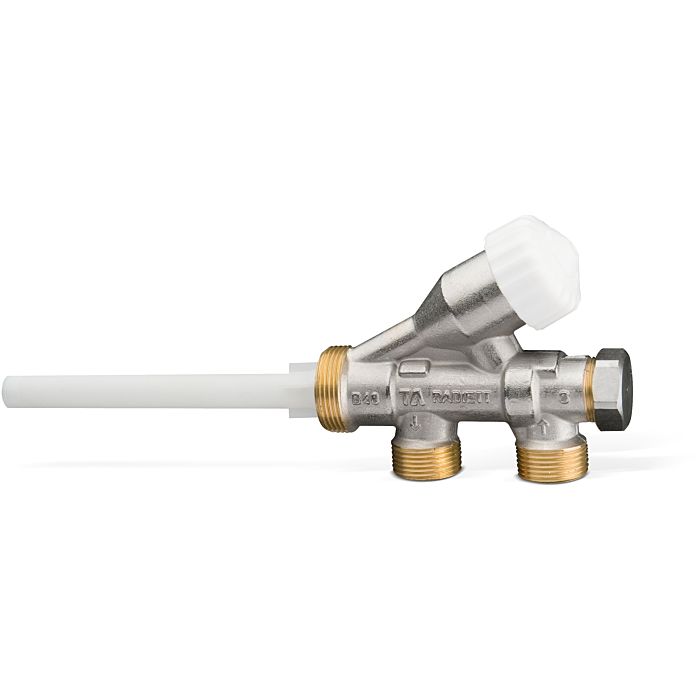

Heimeier single pipe valve 50680005
- for regulating and regulating to achieve the desired room temperature
- Functions regulate
- Preset
- Shut off
- Convertible for 2000 or 2-pipe version
- PN 10
- Max. Differential pressure 100 kPa = 2000 bar
- maximum permissible pressure loss to avoid flow noises 30 kPa = 1930 .3 bar = 3 mWs (for all Valves and dimensions)
- Temperature max. Operating temperature 120 ° C
- Brass valve body
- Brass cone
- The spindle in the upper part is PTFE-coated
- Surface treatment nickel-plated
- Labeling TA
- RADIETT or R-ETT and flow arrows
- Thread for thermostatic head M30 x 2000
- 5
- spherical
- S74
- for renovation and new installation
