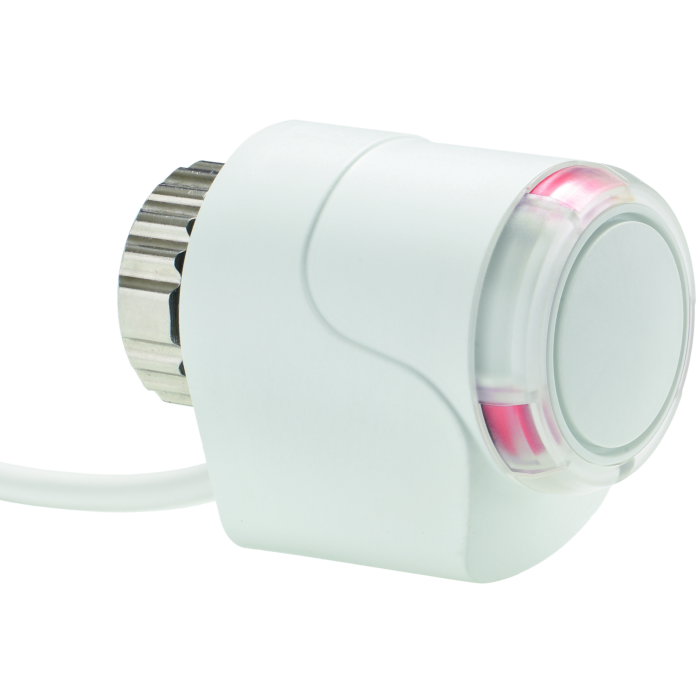

Heimeier Emo T, NC actuator 183300500 normally closed, 230V AC alternating current

Heimeier thermal actuator EMO T, NC 183300500 230V / 1m as two-point actuator . Suitable for all Heimeier thermostatic valve bodies, three-way valves and TA TBV Valves . CE certified. White housing, RAL 9016, made of heat-resistant, impact-resistant plastic. Protective insulation in accordance with protection class II. Degree of protection IP 54. Position indicator visible all round. Stroke 4.7 mm. Force 125 N. Operating voltage: 230 V AC / DC (+ 15% / -15%) Frequency 50 to 60 Hz Power consumption: 2.5 W (VA) Continuous operation Switch-on phase: 58 W (VA) Closing / opening times: approx. 4 min connecting 2000 length fixed 2000 m, 2 x 1930 , 75 mm2 ambient temperature: -5 to 50 Gr.C medium temperature: max. 120 Gr.C storage temperature: -25 to +70 Gr.C make: TA type: EMO T / 230 V normally closed (NC) Art . No. 1833-00.500
