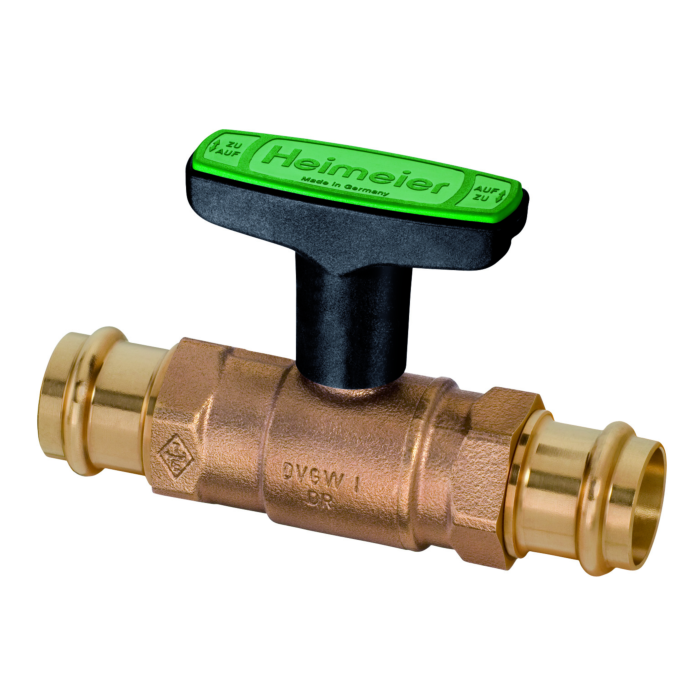

Heimeier Globo drinking water ball valve 0672-22.000
- for drinking water systems
- shut off
- Removable control toggle made of impact-resistant plastic with a small overhang
- Covered toggle stop
- Thermometer for checking the medium temperature
- Can be retrofitted by replacing the green cap in the control knob
- Viega press connection with SC-Contur from DN 15-32
- PM 16
- permissible operating temperature TB 110 °C
- Corrosion-resistant gunmetal body and ball
- Smooth bore ball
- Maintenance-free spindle seal with two EPDM O-rings
- Pure PTFE ball seal
- Thermal insulation shells consisting of two interlocking half-shells
- DN 10-32 suitable for M106 actuator
- Globo D meets the following requirements: DVGW W 570-1
- DVGW W 270
- EN 13828
- DIN 50930-6 and KTW
- classified according to DIN 4109 in valve group I (tested according to EN ESO 3822 part 1 and part 3)
