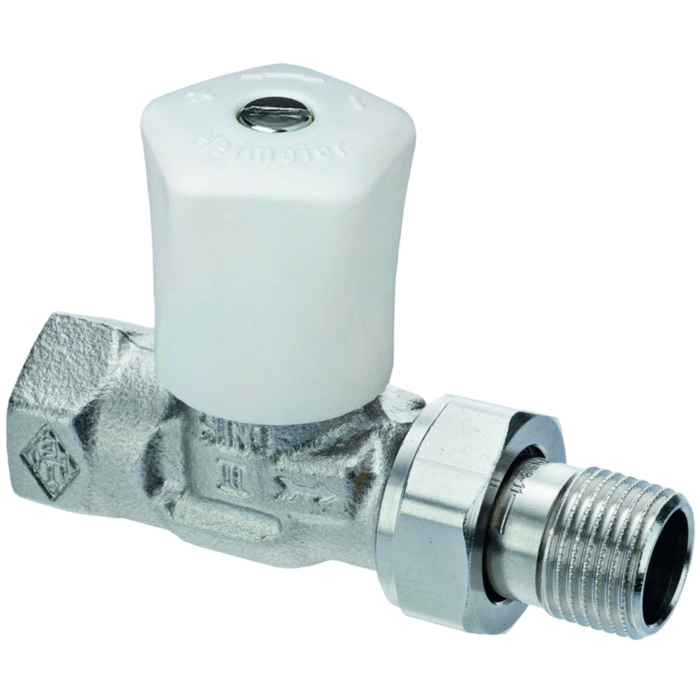

Heimeier Radiators regulating valve 0122-01.500 DN 10, straight, nickel-plated gunmetal, with presetting
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier Radiators regulating valve 0122-01.500
- the Mikrotherm regulating valve with pre-setting is used in pumped hot water heating systems
- Gravity and low pressure steam systems are used
- the non-rising double spindle with the Mikrotherm regulating cone enables hydraulic balancing by presetting
- Area of application heating systems
- Functions preset
- Shut off
- Dimensions DN 10-32
- Pressure class PN 10
- Temperature max. Operating temperature 120 ° C
- Low pressure steam 110 ° C / 1930
- 5 bar
- min. Operating temperature -10 ° C
- Materials valve body gunmetal
- EPDM O-rings
- Brass valve insert
- Handwheel PP (polypropylene)
- shrink-wrapped with protective film
- white RAL 9016
- Surface treatment valve body and Fittings are nickel-plated
- Marking THE
- country code
- Flow direction arrow
- DN
- II marking (DN 10-20)
- Standards building 2000 according to DIN 3841 part 2000
- the housing with internal thread is designed for connection to a threaded pipe
- or in connection with compression fittings on copper, precision steel or composite pipe (only DN 15)
