Heimeier Multilux Eclipse thermostatic valve 3865-02.000 Rp 2000 / 2, 2000 , for two-pipe system, gunmetal nickel-plated
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 50
Part Number: 386502000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

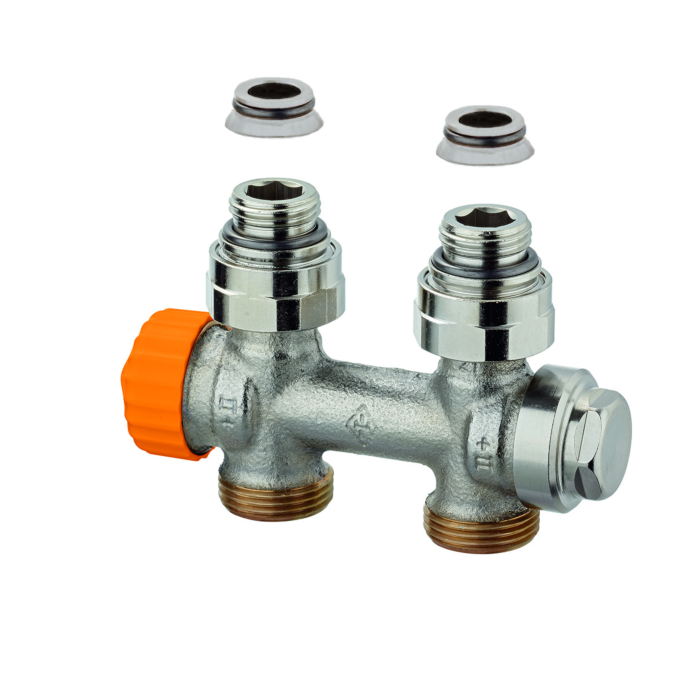

Heimeier Multilux Eclipse thermostatic valve 3865-02.000
- with automatic flow control for Radiators with lower two-point connection
- Center-to-center distance of the connections 50 mm (+/- 2000
- 1930 mm)
- the flow rate is continuously adjustable from 10 to 150 l / h
- the set flow rate is not exceeded
- the valve regulates the flow rate independently of the differential pressure
- Presetting with setting key or open-end wrench SW 11
- the setting values can be read on the front and side
- Housing made of corrosion-resistant
- Dezincification-free gunmetal
- nickel-plated
- with stainless steel spindle and double O-ring seal
- the thermostatic insert can be exchanged for the shut-off insert
- therefore suitable for mounting on the right or left of the Radiators
- the complete thermostatic insert can be replaced with the assembly device without draining the system
- the Eclipse thermostatic insert is suitable for all valve housings with II + marking
- Flow and return can be shut off
- Connection for emptying and filling device
- Connection external thread G 3/4
- in connection with compression fittings for plastic
- Copper-
- Precision steel or composite pipe
- Max. Operating temperature 120 ° C
- with cladding 90 ° C
- min. Operating temperature -10 ° C
- permissible operating pressure PB 10 bar
- min. Differential pressure 10-100 l / h: 10 kPa
- min. Differential pressure 100-150 l / h: 15 kPa
- Max. Differential pressure 60 kPA
