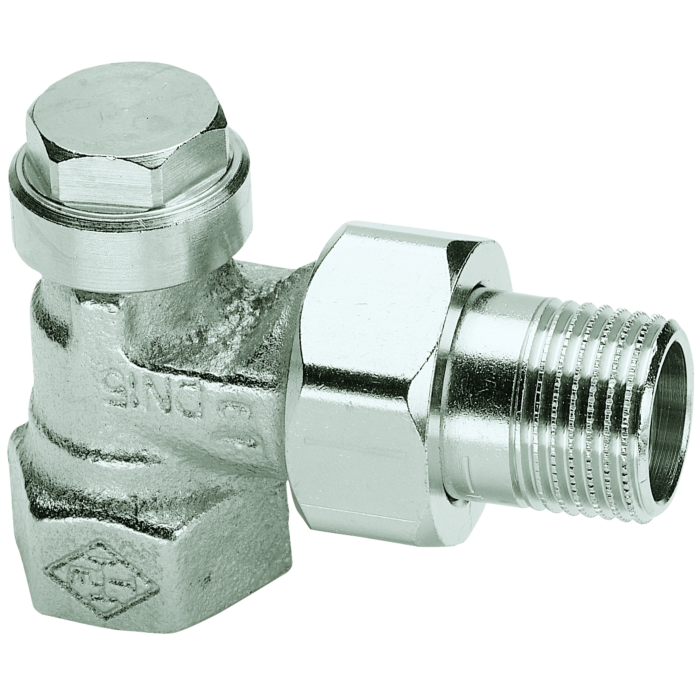

Heimeier return screw connection 035103000 corner 3/4 ", nickel-plated, lockable / adjustable

Heimeier screw connection Regulux corner shape, DN 20, gunmetal nickel-plated HEIMEIER Radiators -return screw connection Lockable and adjustable screw connection with drainage option. Housing made of corrosion-resistant, dezincification-free gunmetal. Installation dimensions according to DIN 3842. Connection internal thread for threaded pipe or in connection with compression fittings for copper or precision steel pipe. With shut-off and fine adjustment by double cone, without stroke limitation. No change to the default when opening or closing. Flat sealing cover. Connection for emptying and filling device. Perm. Operating temperature TB 120 Grd. C. Perm. Operating pressure PB 10 bar. Heimeier : Heimeier Type: Regulux
