Heimeier actuator EMO T, NO 183700500 open when de-energized, 230 V, 2000 m, white
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

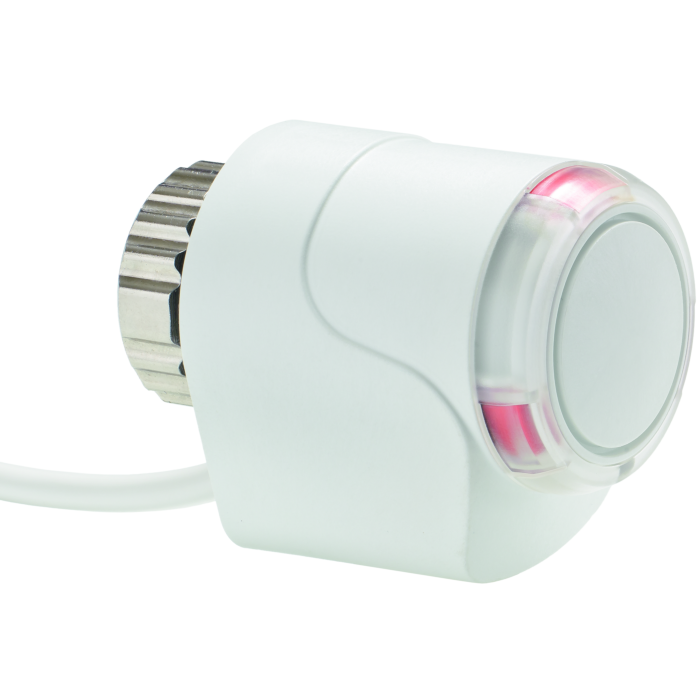

Heimeier actuator EMO T, NO 183700500
230V / 1m as two-point drive. Suitable for all Heimeier thermostatic valve bodies, three-way valves and TA TBV Valves . CE certified. White housing, RAL 9016, made of heat-resistant, impact-resistant plastic. Protective insulation in accordance with protection class II. Degree of protection IP 54. Position indicator visible all round. Stroke 4.7 mm. Force 125 N. Operating voltage: 230 V AC / DC (+ 15% / -15%) Frequency 50 to 60 Hz Power consumption: 2.5 W (VA) Continuous operation Switch-on phase: 58 W (VA) Closing / opening times: approx. 4 min connecting 2000 length fixed 2000 m, 2 x 1930 , 75 mm2 ambient temperature: -5 to 50 Gr.C medium temperature: max. 120 Gr.C storage temperature: -25 to +70 Gr.C make: TA type: EMO T / 230 V normally open (NO)
230V / 1m as two-point drive. Suitable for all Heimeier thermostatic valve bodies, three-way valves and TA TBV Valves . CE certified. White housing, RAL 9016, made of heat-resistant, impact-resistant plastic. Protective insulation in accordance with protection class II. Degree of protection IP 54. Position indicator visible all round. Stroke 4.7 mm. Force 125 N. Operating voltage: 230 V AC / DC (+ 15% / -15%) Frequency 50 to 60 Hz Power consumption: 2.5 W (VA) Continuous operation Switch-on phase: 58 W (VA) Closing / opening times: approx. 4 min connecting 2000 length fixed 2000 m, 2 x 1930 , 75 mm2 ambient temperature: -5 to 50 Gr.C medium temperature: max. 120 Gr.C storage temperature: -25 to +70 Gr.C make: TA type: EMO T / 230 V normally open (NO)
Downloads (2)
Product Safety
Manufacturer
IMI Hydronic Engineering Deutschland GmbH
E-Mail
info.de@imi-hydronic.com
Address
Völlinghauser Weg
59597 Erwitte
Germany
