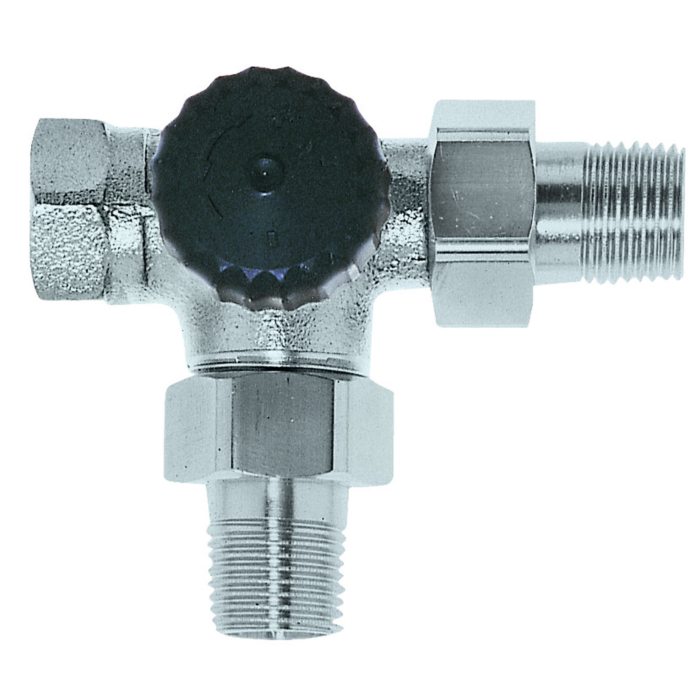

Heimeier thermostatic three-way valve body 4151-02.000 Rp 2000 / 2xR 2000 / 2, left, screw 2000 / 2 ", gunmetal nickel-plated

Name: Heimeier thermostatic three-way valve body 4151-02.000 Rp 2000 / 2xR 2000 / 2, left, screw 2000 / 2 ", gunmetal nickel-plated
Brand: Heimeier
SKU: 415102000
Price: 66.70 EUR
Availability: InStock

€66.70

instead of €80.42 **

-17% You're saving €13.72

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 10

Part Number: 415102000

Questions about the article?

+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm

info@skybad.de

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

Heimeier thermostatic three-way valve body 4151-02.000

Thermostatic three-way valve body without presetting
with automatic bypass control
the thermostatic three-way valve bodies are used in two-pipe pump heating systems
A retrofit thermostatic insert is available for use in single-pipe pump heating systems
when almost all Valves are closed at the same time, additional pressures build up in the heating system
the three-way valve blocks the radiator flow
the bypass to the return is fully opened
additional pressures are avoided and the pressure is kept almost constant
the bypass can be connected to the Radiators return with the corresponding bypass T-piece
Area of application Two-pipe or one-pipe pump heating systems
Features rules
Shut off
Avoidance of additional differential pressure
Ensuring minimum circulating water quantities
DN 15
PN 10
Max. Operating temperature 120 ° C
with protection cap or actuator 100 ° C
min. Operating temperature -10 ° C
Corrosion-resistant gunmetal valve body
Bypass T-piece: brass
EPDM O-rings
EPDM valve disc
Compression spring Stainless Steel
Brass thermostatic insert
Spindle Stainless steel spindle with double O-ring seal
the outer O-ring can be replaced under pressure
Surface treatment of valve housing and screw connection nickel-plated
Marking THE and flow direction arrow
Protection cap black
the housing of the valve lower part or the bypass T-piece is designed for connection to a threaded pipe
or in connection with compression fittings on copper, precision steel or composite pipe
Bypass connection with Ø 15 compression fitting
DN 15 ( 2000 / 2 ") screw nipple or Ø 15 soldering nozzle
Connection for thermostatic heads and Actuators M30 x 2000
