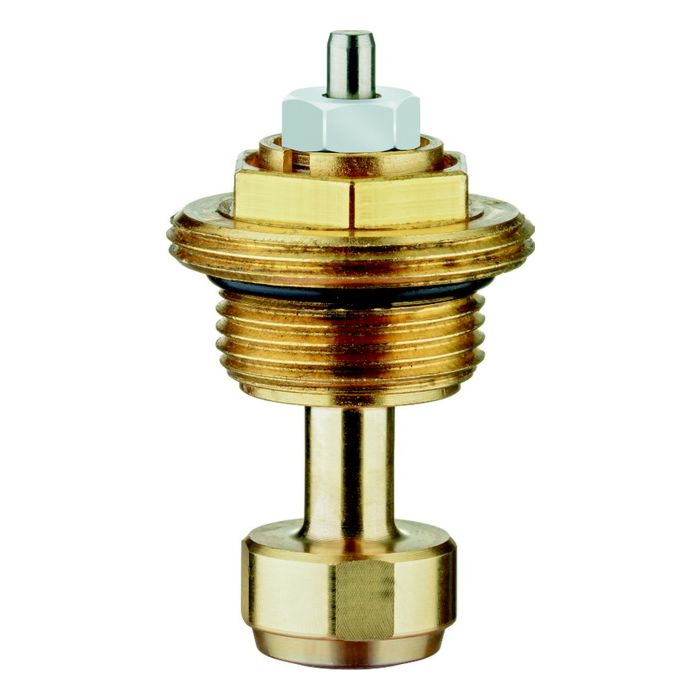

Heimeier thermostatic insert 4316-02.300 M 22x1, with stepless presetting, for valve radiators
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 431602300
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier thermostatic insert 4316-02.300
- the thermostat Valve Handles with integrated precision Valve Handles / fine Valve Handles for all thermostat heads and actuators
- the flow values of the presetting / fine setting can be set easily and precisely with a key
- the selected value can be read on the front of the thermostatic insert
- Area of application heating systems
- Features rules
- stepless precision presetting
- Shut off
- PN 10
- the stainless steel spindle is provided with a double O-ring seal
- Max. Operating temperature 120 ° C
- with protection cap or actuator 100 ° C
- min. Operating temperature 2 ° C
- Materials thermostatic insert brass
- PPS (VHV
- VHF
- VHV8S
- VHF8S)
- EPDM O-rings
- EPDM valve disc
- Compression spring Stainless Steel
- Spindle Stainless steel spindle with double O-ring seal
- the flow values of the presetting / fine setting can be set precisely with a key
- the selected value can be read on the front of the thermostatic insert
- Without Tools , manipulation by unauthorized persons is impossible
- Connection for thermostatic heads and Actuators M 30 x 2000
- 5
- for z. B. Biasi
- Concept
- Diatherm
- Dianorm
- Ferroli
- Superia
- Arbonia
- from 1989
