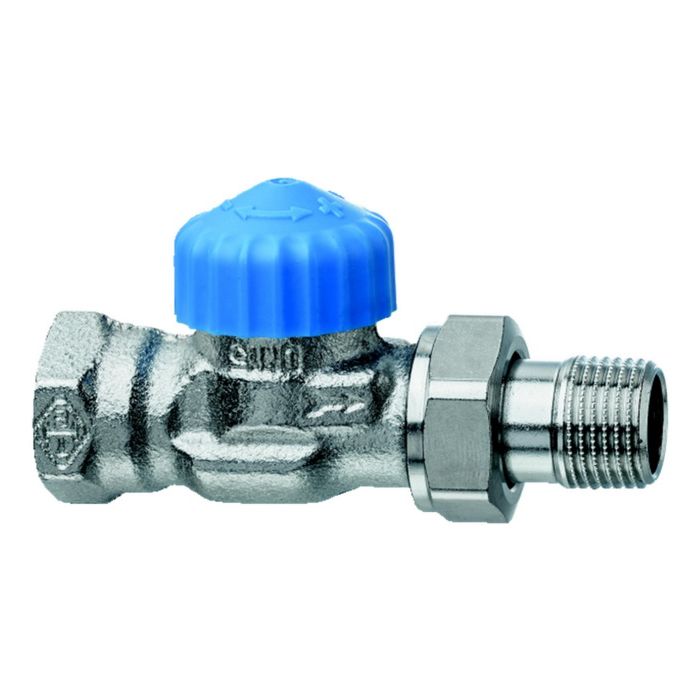

Heimeier thermostatic valve body 2242-02.000 Rp 2000 / 2xR 2000 / 2, 2000 , nickel-plated gunmetal, low resistance
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier thermostatic valve body 2242-02.000
- the thermostatic valve bodies without pre-setting with particularly low resistance
- are z. B. in two-pipe low-temperature heating systems with a small temperature spread
- Gravity systems and conventional one-pipe heating systems are used
- Area of application heating and cooling systems
- regulate
- Shut off
- DN 10-32
- PN 10
- Max. Operating temperature 120 ° C
- with protection cap or actuator 100 ° C
- min. Operating temperature -10 ° C
- Corrosion-resistant gunmetal valve body
- EPDM O-rings
- EPDM valve disc
- Compression spring Stainless Steel
- Brass thermostatic insert
- The complete thermostatic insert can be replaced with the assembly device without draining the system (DN 10
- DN 15)
- Spindle Stainless steel spindle with double O-ring seal
- the outer O-ring can be replaced under pressure
- Surface treatment of valve housing and screw connection nickel-plated
- Marking THE
- country code
- Flow direction arrow
- DN and KEYMARK marking
- Protection cap blue
- Blue stuffing box (DN 10
- DN 15)
- Pipe connection the housing with internal thread is designed for connection to a threaded pipe
- or in connection with compression fittings on copper, precision steel or composite pipe (only DN 15)
- the version with external thread also enables the connection of plastic pipes with the corresponding compression fittings
- Connection for thermostatic heads and Actuators M30 x 2000
- 5
