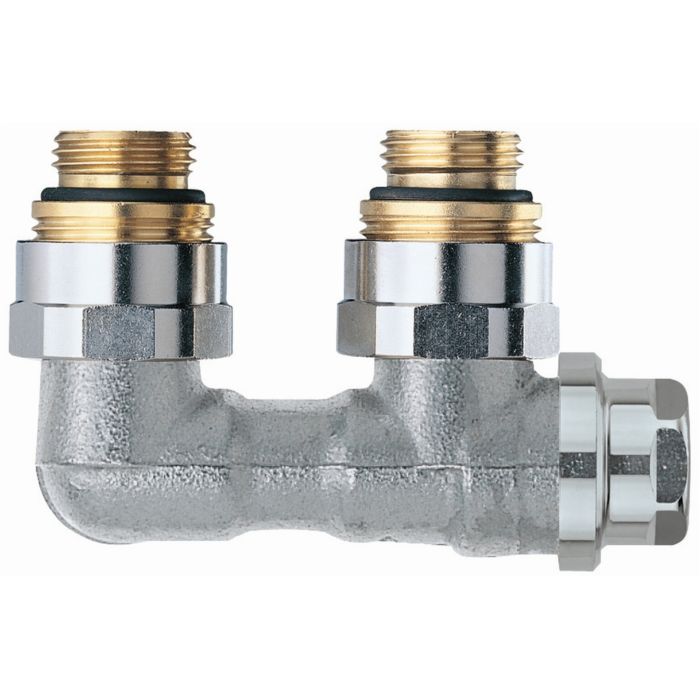

Heimeier screw connection 0531-50.000 corner, Rp 2000 / 2, two- 2000
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Heimeier screw connection 0531-50.000
- Screw connection with drainage for valve radiators
- intended for mounting on valve 2000 with connection Rp 2000 / 2 internal thread and G 3/4 external thread
- with self-sealing connections
- Shutting off and emptying
- Spindle for parallel shut-off of flow and return in one operation
- Operation with universal key
- Drain valve integrated in the spindle
- Center-to-center distance of the connections 50 mm
- Tolerance 2000 +/- 2000
- 1930 mm thanks to special union nuts and flexible flat 1930 system for tension-free assembly
- Sealing on the spindle and cone with EPDM O-rings
- Housing made of corrosion-resistant gunmetal
- nickel-plated
- With special geometry to reduce the reheating of radiators in one-pipe heating systems
- Pipe-side connection G 3/4 with compression fittings for plastic
- Copper-
- Precision steel and composite pipe
- for Mixer taps only the associated
- Use marked compression fittings (marking e.g. 15 THE)
- permissible operating temperature TB 120 ° C
- with cladding TB 90 ° C
- permissible operating pressure PB 10 bar
