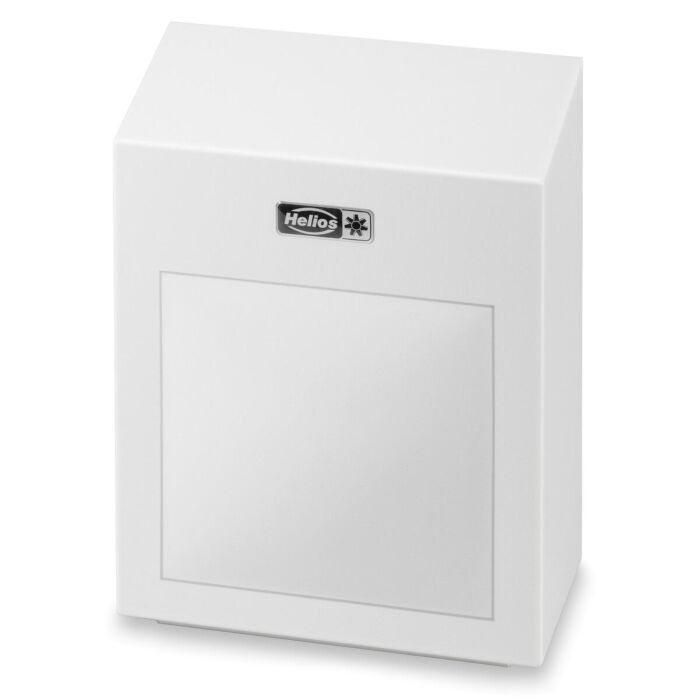

Helios external wall exhaust fan 2655 AV 125, with pipe connection
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: 02655
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Helios outside wall exhaust fan
- Item number: 2655
- with pipe connection DIN 125 mm
- 2 performance levels 380/215 m³ / h volume flow
- suitable for external wall mounting
- for ventilation of small and medium-sized rooms of all Art , in residential, commercial and industrial areas
- weatherproof housing in compatible construction
- galvanized sheet steel
- powder coated
- alpine white
- Connection piece according to standard pipe diameter
- Solid plastic base plate also enables installation on uneven surfaces
- Bird protection grille on the exhaust side
- 2 shutter blades with spring return
- Energy-saving radial impeller with backward-curved blades made of high-quality plastic for low-noise operation, dynamically balanced
- maintenance-free, closed ball-bearing motor with moisture protection and thermal overload protection in the winding
- Power regulation
using external operating Art MVB ( Art . no. 6091)
infinitely variable by means of electronic speed controller ESU1 / ESA1 ( Art . 0236/0238) transformer speed controller TSW 2000 , 5 ( Art . 1495) - Electrical connection flush-mounted from the rear or surface-mounted from the side possible
Downloads (4)
Product Safety
Manufacturer
Helios Ventilatoren GmbH & Co. KG
E-Mail
info@heliosventilatoren.de
Address
Lupfenstraße 8
78056 Villingen-Schwenningen
Germany
