Herzbach MODUL7 fitting set H-RB250 70.702712.1.12 wall arm rain shower 250mm matt black
Details
herzbach MODUL7 lever mixer set H-RB250 with rain shower
and hand shower for use in the shower area

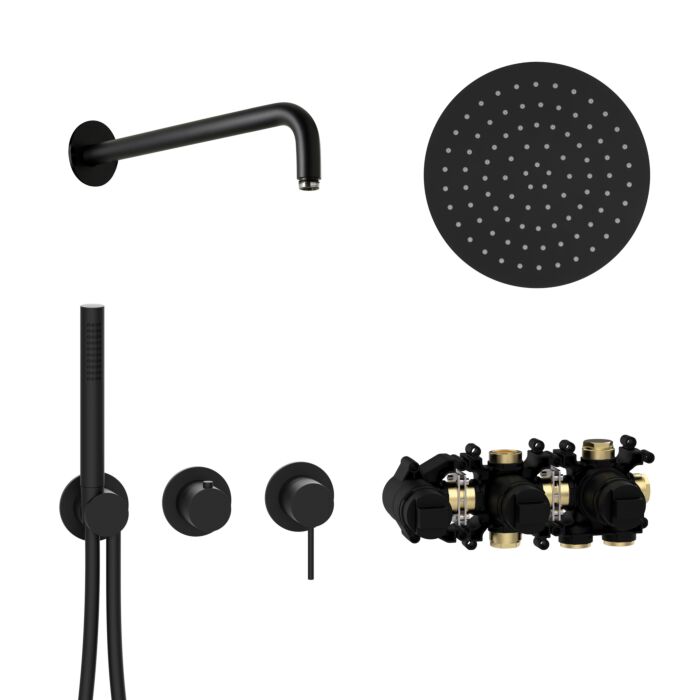

SET SCOPE
70.720002.1.09 MODUL7 lever mixer installation body
70.702002.1.12 MODUL7 lever mixer paint set for 2 consumers
23.960350.1.12 LIVING SPA wall arm 350 mm, Ø 70 mm
23.600250.1.12 LIVING SPA Slim rain shower Ø 250 mm
MODUL7 lever mixer installation body
-for 2 consumers
MODUL7 lever mixer
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation
-Brass control handle
-Brass module cover Ø 70 mm
MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm
MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm
LIVING SPA wall arm
- Throat 350 mm
- Round angled shape
-1/2"" connection thread
-Brass cover Ø 70 mm
LIVING SPA Slim rain shower
-Diameter Ø 250 mm
-Clean effect
Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt black surface
Manufacturer herzbach / product group M7 SETS BLACK
Item No. 70.702712.1.12
