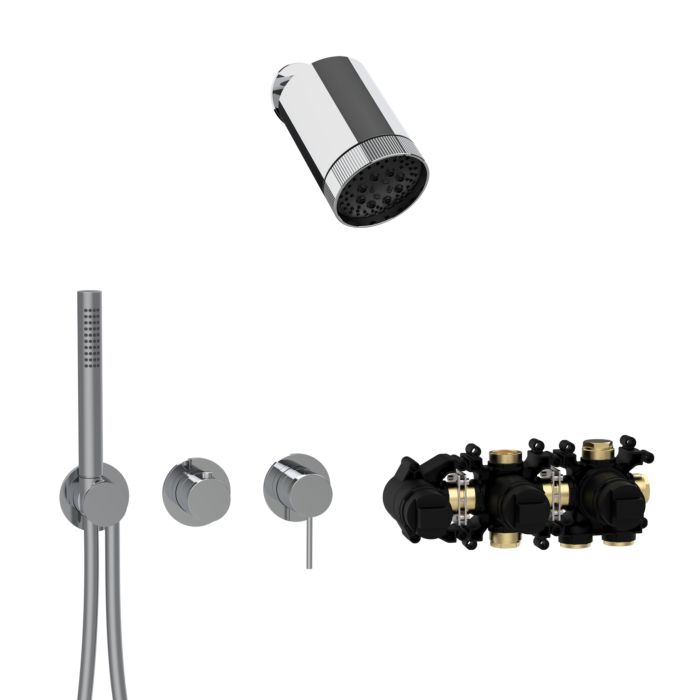

Herzbach MODUL7 fitting set H-SP3 70.702722.1.01 SPOT Multi Chrome

herzbach MODUL7 lever mixer set H-SP3 with SPOT Multi

and hand shower for use in the shower area

SET SCOPE
70.720002.1.09 MODUL7 lever mixer installation body
70.702002.1.01 MODUL7 lever mixer paint set for 2 consumers
11.044286.1.01 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi

MODUL7 lever mixer installation body
-for 2 consumers

MODUL7 lever mixer
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall-mounted rain shower SPOT multifunction 3
-Blast types: rain / rain soft / massage
-Spray type change using ring adjustment on the shower head
-Dimension 102mm x 142mm
-Incl. round Ø 70 mm and square 70 mm x 70 mm brass wall panel
-centered tilt angle of the shower head 45°
-Shower head can be tilted up/down by 15°
-Clean effect

Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Chrome surface
Manufacturer herzbach / product group M7 SETS CHROME
Item No. 70.702722.1.01
