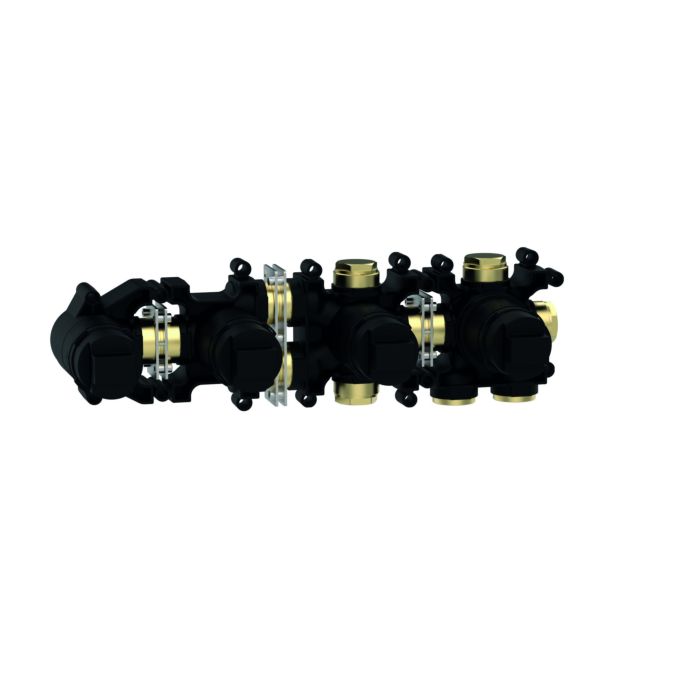

Herzbach MODUL7 built-in unit with spout 70.720012.1.09 lever mixer 2 outlets

herzbach MODUL7 lever mixer installation unit for 2 consumers consisting of:

MODUL7 lever mixer
-2 inlets marked at the bottom to prevent confusion
-Connection thread G 3/4""
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation

MODUL7 changeover valve
-ceramic 2-way diverter
-Comfortable separate consumer selection through haptic locking point

MODUL7 1/2"" connection elbow
-for mounting a wall outlet

MODUL7 1/2"" connection elbow
-for mounting a shower holder set

Module center distance 105 mm
sound-insulated installation
Sealing sleeve suitable for sealing according to DIN 18534
Installation depth 60 mm - 90 mm
maximum flow rate at 3 bar:
Hand shower 23 l/min
Wall outlet 23.5 l/min
Min. operating pressure: 0.5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Manufacturer herzbach / Product group M7 EBK
Item No. 70.720012.1.09
